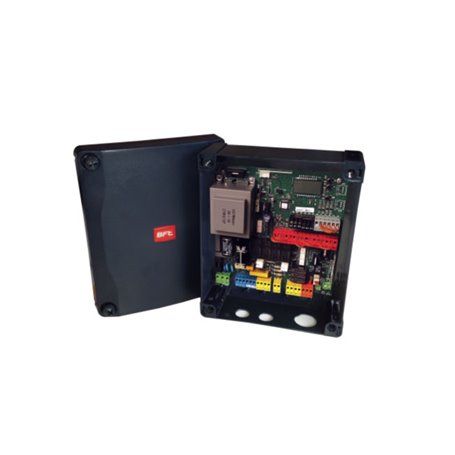

BFT D113833 00002 RIGEL 6 ACL2 PANEL CPEM 220-230V 50/60HZ
- MT Code
- BFT_D113833 00002
- Manufacturer Code
- D113833 00002
- Brand
- BFT
Description
Universal display control panel for one or two operators from 230V, 650+650W Application: universal control panel for one or two operators Card power supply: 230V single-phase Operator power supply: 230V single-phase Main characteristics: removable terminal blocks, programming and diagnostics with display, built-in four-channel receiver, electric lock or magnetic connection, electronic torque limiter, electronic slowdown when opening and closing, separate limit switch inputs for each motor, possibility of traffic light management and preheating hydraulic operators, weekly timer, possibility of canceling a specific radio control, personalization of the 4 radio channels, customization of timed output duration, adjustable obstacle sensitivity. Main functions: automatic closing, separate motor working times, keeping the lock closed, water hammer, 2/3/4 step logic, partial opening, quick closing, opening and closing separately, weekly timer. Compatibility: RIGEL 5 - RIGEL 4 - RIGEL 3 - RIGEL N
Data Sheet
Codice Produttore | D113833 00002 |
---|---|
Brand | BFT |
Download
D811907 02
|
1.4 MB |
