ZENNIO ZVIF6V2A Tas. cap.flat, 6 keys+black T°

ZENNIO ZVIF6V2A Tas. cap.flat, 6 keys+black T°

MT Code
ZNN_ZVIF6V2A
Manufacturer Code
ZVIF6V2A
Brand
ZENNIO
ZENNIO
extra discount
Description

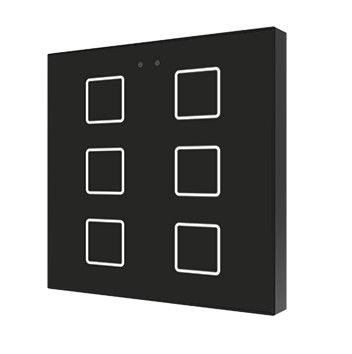

The ZENNIO ZVIF6V2A is a capacitive touch switch with a flat design and total customization, ideal for home and commercial automation environments.

Key Features

  • Printed glass panel with capacitive touch, customizable through a web application.
  • 6 configurable touch areas.
  • 2 analog/digital inputs configurable as binary inputs, sensors, buttons, temperature probes or motion detectors.
  • Integrated thermostat and internal temperature probe.
  • Illumination of the touch areas to indicate the status.
  • Brightness and proximity sensor that adjusts the brightness of the icons according to the environment.

Technical Specifications

  • Supply voltage: 29 VDC SELV (range 21-31 VDC).
  • Maximum consumption: 504.6 mW (at 29 VDC).
  • Connection type: TP1 bus connector for 0.8 mm Ø rigid cable.
  • Operating temperature: 0.. +55 °C.
  • Storage temperature: -20.. +55 °C.
  • Operating and storage humidity: 5.. 95%.
  • Protection class: IP20, clean environment.
  • Case material: PC+ABS FR V0 halogen-free.
  • Weight: 97 g
Installation and Use
  • Recessed installation on standard wall box.
  • Dimensions: 81 x 81 x 31 mm (protrudes 9 mm from the wall).
  • Fixing clips for a stable fixation of the device.
  • Programming button and LED to configure the device and indicate the programming mode.
  • Saving data in the event of a KNX bus failure and restoring data when restarting the KNX bus according to the parameters.
Sensors and Functionality
  • Internal temperature sensor with a resolution of 0.1 °C and accuracy of ±0.5 °C at 25 °C.
  • Brightness and proximity sensor to automatically adjust the brightness of the icons.
Data Sheet
Codice Produttore ZVIF6V2A
Brand ZENNIO
Discount category ZNN15
