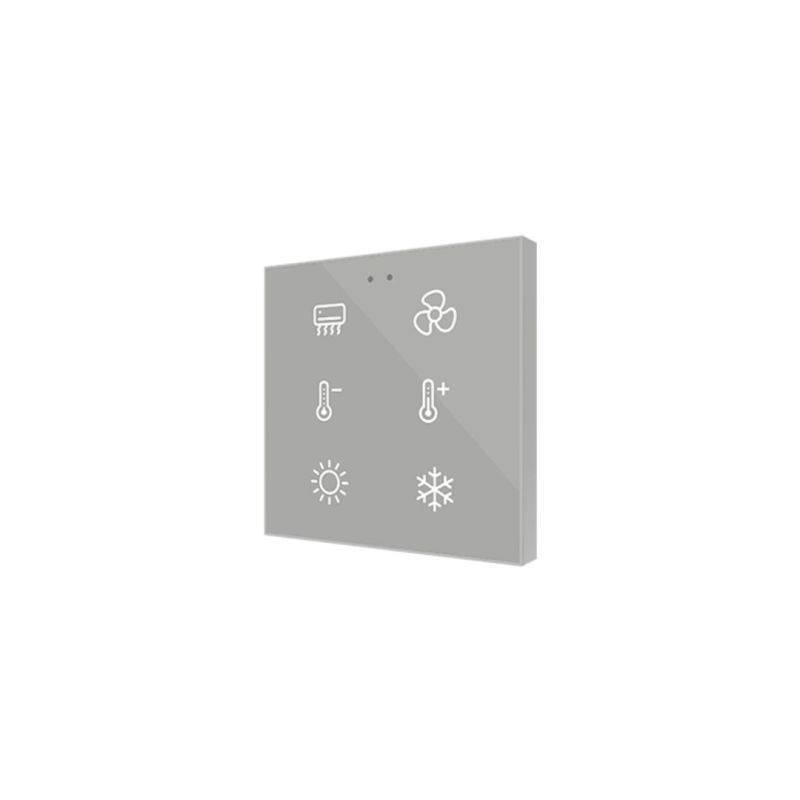

ZENNIO ZVIF6V2 ZVIF6V2 Flat 6 v2, backlit capacitive touch keyboard, 6 keys, custom

Key Features

• Printed glass touch panel with the possibility of customizing the image through a web application.
• 6 configurable touch areas.
• 2 analog/digital inputs.
• Built-in thermostat.
• Internal temperature sensor with a measurement range from -30°C to +90°C and a resolution of 0.1°C.
• Brightness and proximity sensor.
• Saving data in the event of a KNX bus failure according to the parameterization.
• Integrated KNX BCU control unit (TP1-256).

Design and Installation

The device has a flat design with a 9 mm projection from the wall and dimensions of 81 x 81 x 31 mm. The installation is carried out by means of recessed mounting on a junction box.

Technical Specifications

• Supply voltage: 29 VDC SELV (operating range 21-31 VDC).
• Maximum consumption: 504.6 mW at 29 VDC.
• Operating temperature: 0°C to +55°C.
• Storage temperature: -20°C to +55°C.
• Operating and storage humidity: 5% - 95%.
• Protection class: IP20, clean environment.
• Case material: PC+ABS FR V0, halogen-free.

Inputs and Sensors

The two analog/digital inputs can be configured to accommodate free potential sensors, buttons, temperature probes or motion sensors. The maximum cable length for temperature sensors is 30 m.

Indicators and Feedback

• Programming LED that indicates the programming mode (red).
• Tactile area lighting to indicate the status, adjusted by the ambient light sensor and attenuated when the user is not detected by the proximity sensor.
