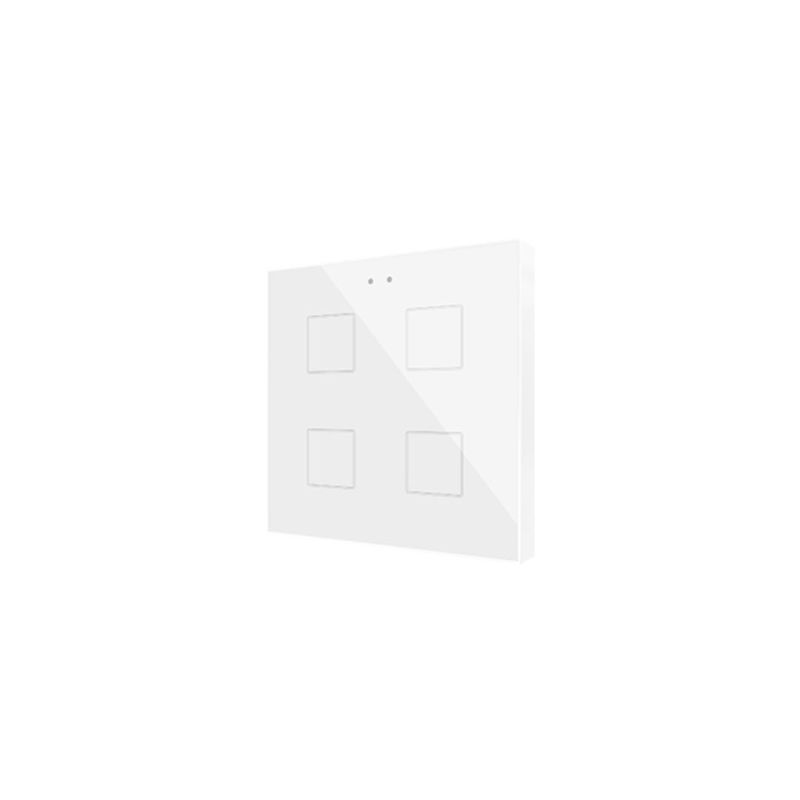

ZENNIO ZVIF4V2W ZVIF4V2W Flat 4 v2 Backlit Capacitive Touch Keyboard, 4 Keys, White

<p/the ZENNIO ZVIF4V2W product is a Flat v2 series capacitive touch switch, designed for integration into domestic and industrial automation systems.

Key Features

This device has a printed glass panel with capacitive touch technology, customizable through a web application. Versions with 1, 2, 4 or 6 touch areas are available, with the ZVIF4V2W model that includes 4 touch areas.

Glass Panel and Lighting

The glass panel can be customized with images, icons, texts or logos. The touch areas are backlit and the brightness adapts to the ambient brightness thanks to the brightness and proximity sensor.

Technical Functionality

The device includes an internal temperature sensor and a thermostat, as well as 2 analog-digital inputs configurable as binary inputs, sensors, buttons, temperature probes or motion detectors.

Inputs and Sensors

• 2 analog-digital inputs
• Internal temperature sensor with an accuracy of ±0.5 °C at 25 °C and a resolution of 0.1 °C
• Support for external temperature probes and motion detectors

Technical Specifications

The device operates with a typical supply voltage of 29 VDC SELV, with a voltage range between 21-31 VDC. The maximum consumption is 469.8 mW for the ZVIF4V2W model.

Food and Consumption

• Supply voltage: 21-31 VDC
• Maximum consumption: 469.8 mW at 29 VDC

Installation and Protection

The installation is carried out by means of recessed mounting on a square or round recessed box. The device complies with CE, UKCA and RCM directives and has an IP20 protection class, suitable for clean environments.

Dimensions and Weight

• Dimensions: 81 x 81 x 31 mm (protrudes 9 mm from the wall)
• Weight: 97 g

Indicators and Sensors

The device includes a programming LED that indicates the programming mode and a brightness and proximity sensor that adjusts the backlighting of the touch areas.
