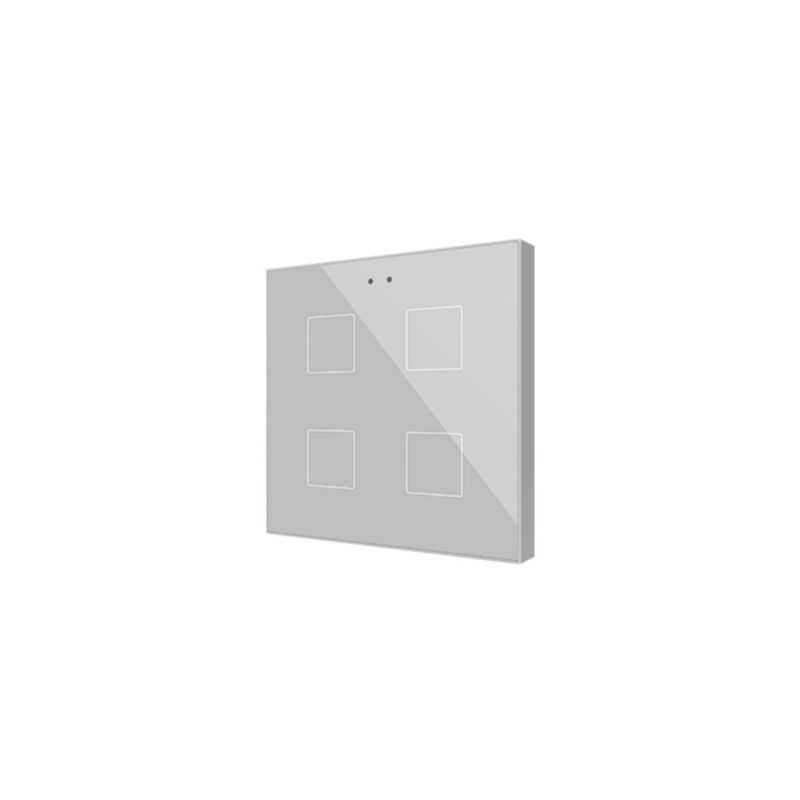

ZENNIO ZVIF4V2S ZVIF4V2S Flat 4 v2 Backlit Capacitive Touch Keyboard, 4 Keys. silver

<p/the ZENNIO ZVIF4V2S product is a capacitive switch with a printed glass touch panel, designed to meet control and management needs in home and industrial automation applications.

Key Features

This device is available with 4 touch areas and offers a series of innovative features:

• Printed glass panel with customizable image through a web application.
• 4 touch areas with backlighting that adapt to the brightness and the presence of users thanks to the proximity sensor.
• Integrated temperature sensor with an accuracy of ±0.5 °C at 25 °C and a resolution of 0.1 °C.
• Integrated thermostat for temperature control.
• 2 analog/digital inputs configurable as binary inputs, sensors, buttons, temperature probes or motion detectors.

Technical Specifications

The following technical details highlight the ruggedness and versatility of the device:

• Supply voltage: 29 VDC SELV (range 21-31 VDC).
• Maximum consumption: 16.2 mA at 29 VDC (469.8 mW).
• Operating temperature: 0.. +55 °C.
• Storage temperature: -20.. +55 °C.
• Operating and storage humidity: 5.. 95%.
• Protection class: IP20, clean environment.
• Case material: PC+ABS FR V0, halogen-free.
• Weight: 97 g
• Dimensions: 81 x 81 x 31 mm (9 mm projection from the wall).

Installation and Use

The installation of the device is simple and requires a few steps:

• Fix the metal plate in the square or round recessed box using the box's screws.
• Connect the KNX bus and input terminals to the back of the device.
• Insert the device into its final position and verify that the force of the clips is sufficient to secure it.

The ZENNIO ZVIF4V2S device complies with CE, UKCA and RCM directives, ensuring high performance and safety in automation applications.
