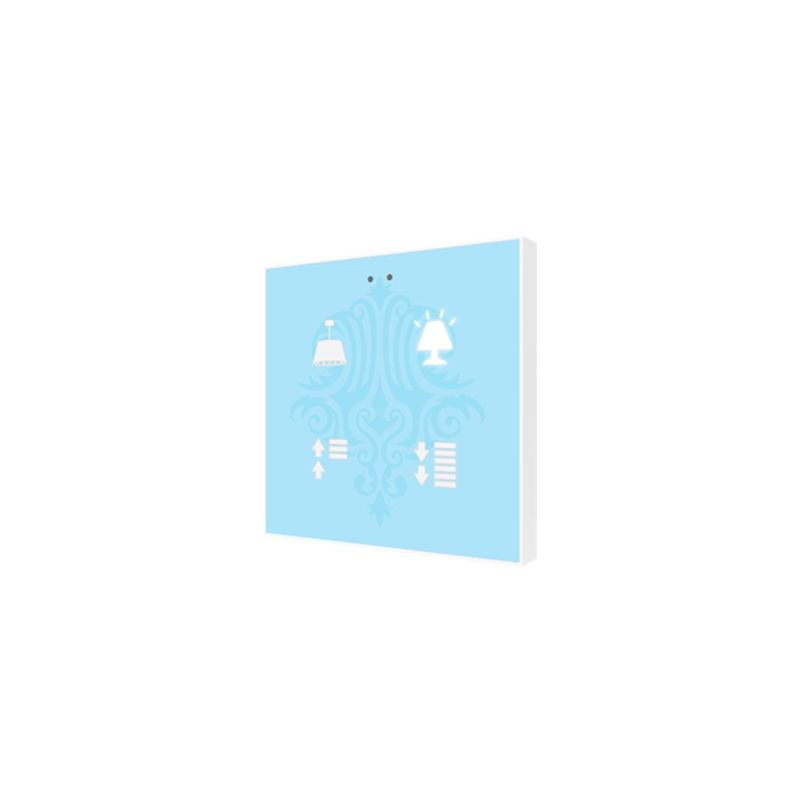

ZENNIO ZVIF4V2 ZVIF4V2 Flat 4 Backlit Capacitive Touch Keyboard, 4 Keys, Custom

The ZENNIO ZVIF4V2 is a capacitive touch switch from the Flat family, designed to offer an elegant and functional control solution for residential and commercial environments.

Key Features

This device has a tempered glass panel that can be customized through a web application, allowing you to create unique compositions with images, icons, texts or logos.

Tactile panel

• 4 configurable touch areas
• High strength tempered glass panel
• Backlit icons with brightness adjustment based on the ambient light sensor
• Dimmer the brightness when the user is not detected by the proximity sensor

Sensors and Functionality

• Integrated temperature sensor with an accuracy of ±0.5 °C at 25 °C and a resolution of 0.1 °C
• Brightness and proximity sensor to automatically adjust the brightness of the icons
• Integrated thermostat for temperature control

Inputs and Connections

• 2 configurable analog-digital inputs for free potential sensors, buttons, temperature probes or motion sensors
• KNX bus connection via TP1 connector for 0.8 mm Ø rigid cables
• Flush mount on standard European or British wall box

Technical Specifications

• Supply voltage: 21-31 VDC (typical 29 VDC SELV)
• Maximum consumption: 469.8 mW at 29 VDC
• Operating temperature: 0.. +55 °C
• Storage temperature: -20.. +55 °C
• Operating and storage humidity: 5.. 95%
• Protection class: IP20, clean environment
• Case material: PC+ABS FR V0, halogen-free

Installation and Use

• Recessed installation on a square or round wall box
• Connecting the KNX bus and terminal inputs on the back of the device
• Status indicators: programming LED (red) and backlighting of the touch areas based on the parameterization
