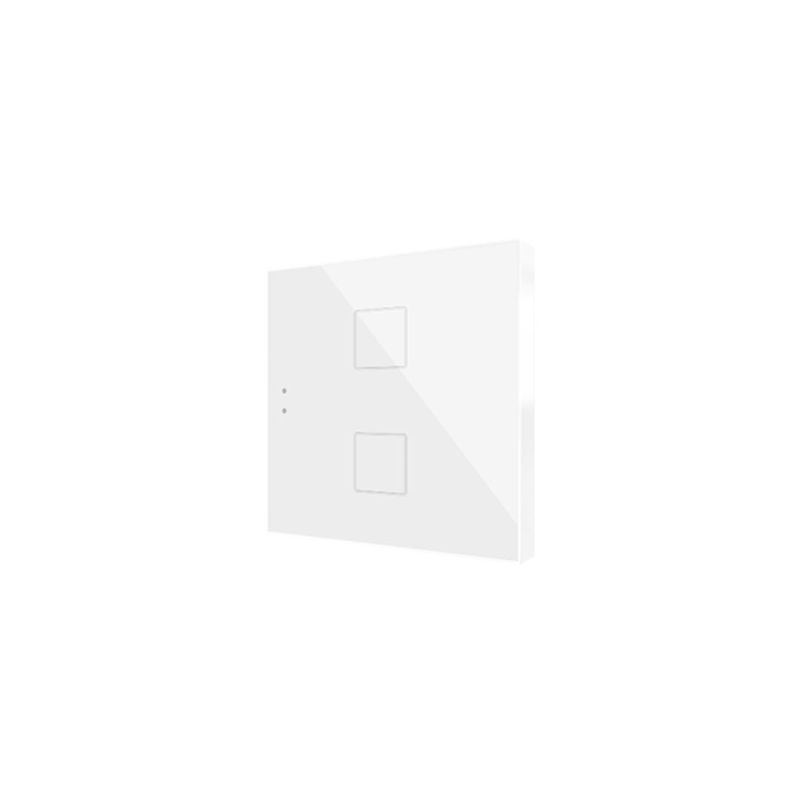

ZENNIO ZVIF2V2W ZVIF2V2W Flat 2 Backlit Capacitive Touch Keyboard, 2 Keys, White

The ZENNIO ZVIF2V2W device is a dual-button capacitive switch with cutting-edge technology, designed to integrate perfectly into domestic and commercial environments. This device is part of the Flat v2 family, characterized by a flat and elegant design, with a projection from the wall of only 9 mm.

Key Features

• Printed glass panel with capacitive touch, customizable through a web application with images, icons, texts or logos.
• 2 touch areas, illuminated to indicate status.
• Brightness and proximity sensor to adjust the lighting of the touch areas according to the environment.
• Integrated temperature sensor and thermostat.
• 2 analog/digital inputs configurable as binary inputs, sensors, buttons, temperature probes or motion detectors.

Technical Specifications

• Supply voltage: 21-31 VDC (typical 29 VDC SELV).
• Maximum consumption: 12.2 mA @ 29 VDC (353.8 mW).
• Operating temperature: 0.. +55 °C.
• Storage temperature: -20.. +55 °C.
• Operating humidity: 5.. 95%.
• Storage humidity: 5.. 95%.
• Protection class: III.
• Type of operation: Continuous.
• Degree of protection: IP20, clean environment.
• Weight: 97 g.
• Case material: PC+ABS FR V0, halogen-free.

Installation and Connectivity

• Recessed installation on a square or round wall box.
• TP1 connector for KNX bus with 0.8 mm Ø rigid cable.
• Connection terminals for screw lock inputs (0.2 Nm max.).
• Maximum cable length: 30 m.

Sensors and Inputs

• Internal temperature sensor with measurement range -30.. +90 °C and resolution of 0.1 °C.
• NTC probe with accuracy of ±0.5 °C @ 25 °C (extendable up to 30 m).
• Up to two motion sensors can be connected in parallel to the same device input.
