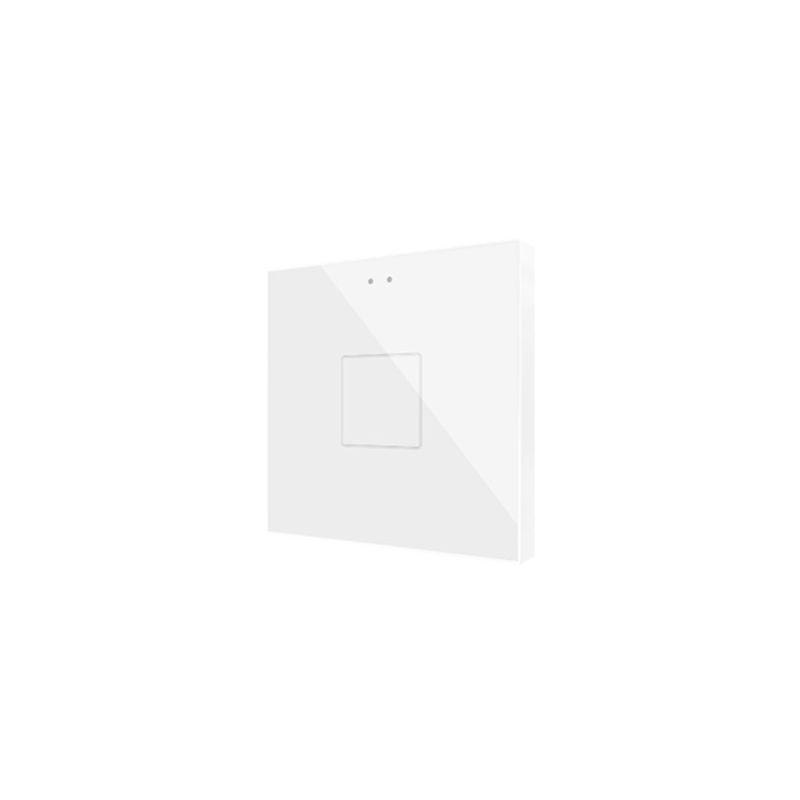

ZENNIO ZVIF1V2W Flat capacitive keyboard, 1 button + white T°

The ZENNIO ZVIF1V2W device belongs to the Flat v2 family of capacitive switches, designed to offer an elegant and functional solution for controlling electrical installations.

Key Features

This capacitive switch is characterized by a printed glass panel that can be customized through a web application, allowing you to create unique designs with images, icons, texts or logos.

Tactile panel

• Customizable printed glass panel.
• 1 touch area for the ZVIF1V2 model.
• Backlighting of the touch areas to indicate the status, adapting to the ambient brightness and the proximity sensor.

Sensors and Inputs

• Integrated temperature sensor with an accuracy of ±0.5 °C at 25 °C and a resolution of 0.1 °C.
• Brightness and proximity sensor.
• 2 analog/digital inputs configurable as binary inputs, sensors, buttons, temperature probes or motion detectors.

Control Functionality

• Integrated thermostat for temperature control.
• Compatible with the KNX bus and standard TP1 connector for 0.8 mm Ø rigid cables.
• No need for external power.

Technical Specifications

• Supply voltage: 29 VDC SELV (range 21-31 VDC).
• Maximum consumption: 14.1 mA @ 29 VDC (408.9 mW).
• Operating temperature: 0.. +55 °C.
• Storage temperature: -20.. +55 °C.
• Operating and storage humidity: 5.. 95%.
• Protection class: III.
• Degree of protection: IP20, clean environment.
• Dimensions: 81 x 81 x 31 mm (9 mm projection from the wall).
• Case material: PC+ABS FR V0, halogen-free.

Installation

• Recessed installation on a square or round wall box.
• Connecting the KNX bus and input terminals on the back of the device.
• Fixing the device in the final position using the fixing clips.
