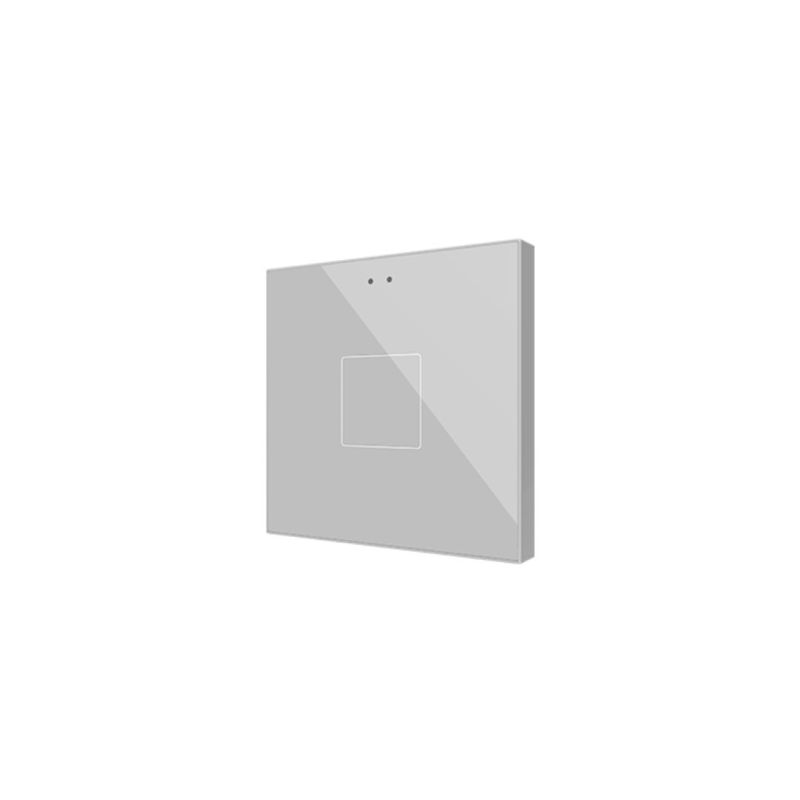

ZENNIO ZVIF1V2S Flat capacitive keyboard, 1 button + T° silver

The ZENNIO ZVIF1V2S device belongs to the family of Flat touch capacitive switches, characterized by a flat and customizable design.

Key Features

• Printed glass touch panel with images, icons, texts or logos that can be customized through a web application.
• A touch area with a backlit icon that adapts to the brightness and the presence of users thanks to the proximity sensor.
• Integrated internal temperature sensor and thermostat.
• 2 analog/digital inputs configurable as binary inputs, sensors, buttons, temperature probes or motion detectors.
• Brightness and proximity sensor.

Technical Specifications

• Supply voltage: 29 VDC SELV (range 21-31 VDC).
• Maximum consumption: 14.1 mA @ 29 VDC (408.9 mW) [1] [3] [5).
• Operating temperature: 0.. +55 °C.
• Storage temperature: -20.. +55 °C.
• Operating and storage humidity: 5.. 95%.
• Protection class: III.
• Degree of protection: IP20, clean environment.
• Dimensions: 81 x 81 x 31 mm (protrudes 9 mm from the wall).
• Case material: PC+ABS FR V0 halogen free.

Installation and Use

• Recessed installation on a square or round electrical box.
• Connecting the KNX bus and terminal inputs on the back of the device.
• Programming button to set the programming mode and LED to indicate the programming mode (red).
• Saving data in the event of a KNX bus failure according to the parameterization.

Accessories and Configurations

• Temperature probe and motion detector as accessories.
• Possibility to connect up to two motion sensors in parallel on the same device input.
