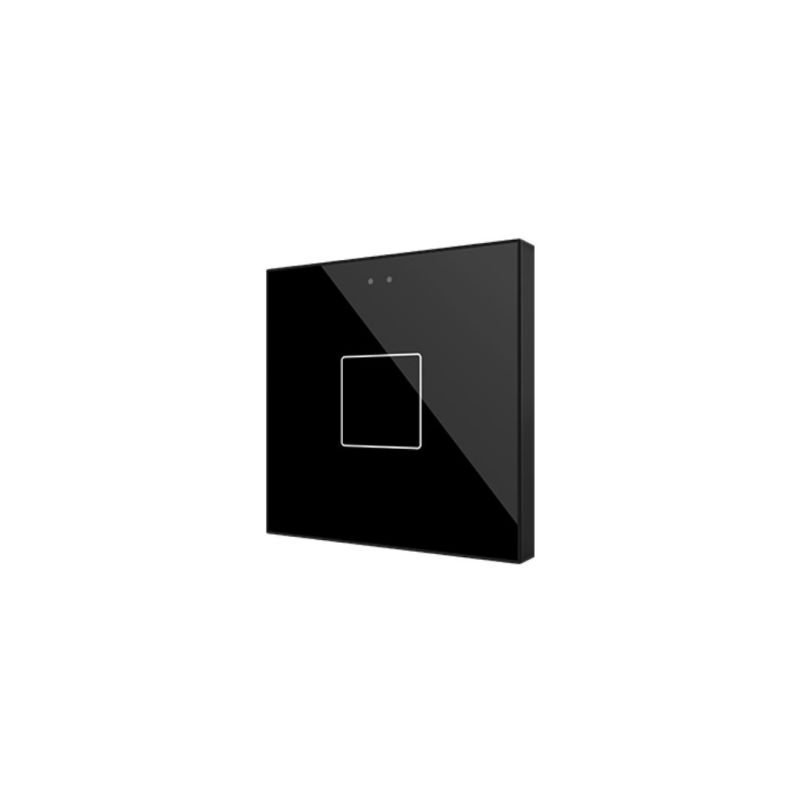

ZENNIO ZVIF1V2A Flat capacitive keyboard, 1 button + black T°

ZENNIO ZVIF1V2A Flat capacitive keyboard, 1 button + black T°

MT Code
ZNN_ZVIF1V2A
Manufacturer Code
ZVIF1V2A
Brand
ZENNIO
ZENNIO
extra discount
Description
<p/the ZENNIO ZVIF1V2A product is a high-quality capacitive touch switch, designed to meet control and management needs in home and industrial automation applications.

Key Features

  • Printed glass touch panel customizable through a web application, allowing you to insert images, icons, texts or logos.
  • 1 touch area, configurable according to the user's specific needs.
  • 2 analog/digital inputs, usable as binary inputs, sensors, buttons, temperature probes or motion detectors.
  • Integrated temperature sensor and thermostat for precise temperature control.
  • Brightness and proximity sensor that adjusts the lighting of the touch areas according to the surrounding environment.
  • Illumination of the touch areas to indicate the status.
  • Data storage in the event of a KNX bus failure, with data recovery when the bus restarts.
  • Integrated KNX BCU control unit (TP1-256).

Technical Specifications

  • Supply voltage: 29 VDC SELV (range 21-31 VDC).
  • Maximum consumption: 14.1 mA @ 29 VDC (408.9 mW).
  • Operating temperature: 0.. +55 °C.
  • Storage temperature: -20.. +55 °C.
  • Operating humidity: 5.. 95%.
  • Storage humidity: 5.. 95%.
  • Protection class: III.
  • Type of operation: Continuous.
  • Degree of protection: IP20, clean environment.
  • Installation: Recessed mounting on a built-in box.
  • Weight: 97 g
  • Case material: PC+ABS FR V0, halogen-free.
Installation and Use
  • Fix the metal plate in the square or round recessed box using the box screws, making sure it is level.
  • Connect the KNX bus and input terminals to the back of the device.
  • Insert the device into its final position and verify that the force of the clips is sufficient to secure the device.
Inputs and Sensors
  • Number of inputs: 2.
  • Operating voltage of the inputs: +3.3 VDC.
  • Input operating current: 1 mA @ 3.3 VDC (per input).
  • Switching type: Dry voltage contacts between input and common.
  • Connection method: Screw terminal block (0.2 Nm max.).
  • Cable cross section: 0.2-1.5 mm² (IEC)/28-14 AWG (UL).
  • Maximum cable length: 30 m.
  • NTC probe length: 1.5 m (extendable up to 30 m).
  • NTC probe accuracy (@ 25 °C): ±0.5 °C.
  • Temperature resolution: 0.1°C.
  • Maximum response time: 10 ms.
Data Sheet
Codice Produttore ZVIF1V2A
Brand ZENNIO
Discount category ZNN15
