ZENNIO ZVIF1V2 Flat capacitive keyboard, 1 button + custom T°

MT Code: ZNN_ZVIF1V2
Manufacturer Code: ZVIF1V2
Brand: ZENNIO

The ZENNIO ZVIF1V2 device is a Flat series capacitive touch switch, designed to offer an elegant and functional solution for controlling electrical installations.

Key Features

This device has a printed glass panel with a customizable touch area through a web application, allowing you to create unique designs with images, icons, texts or logos.

Control Panel

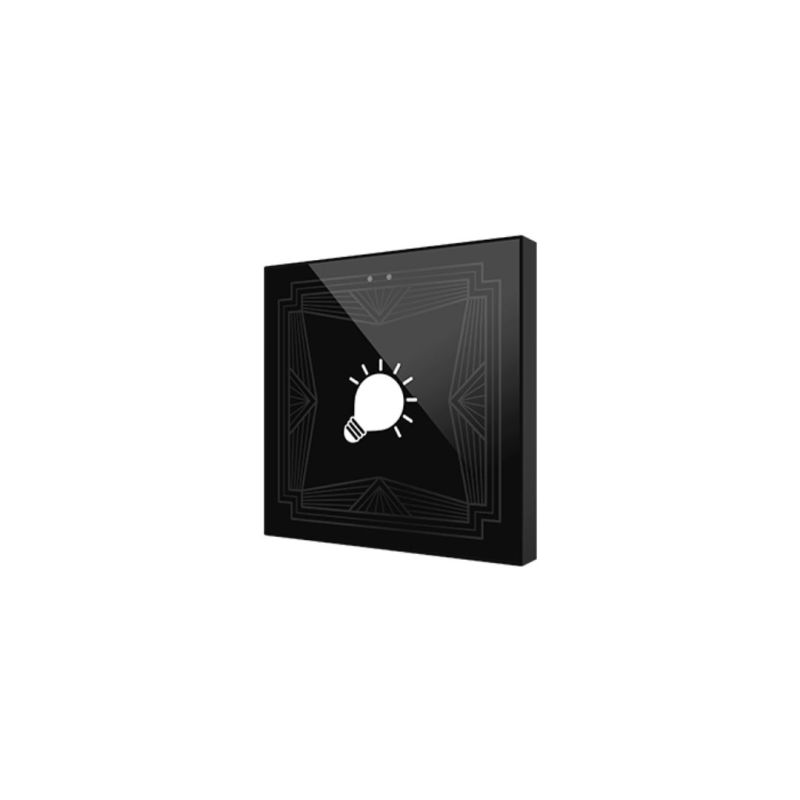

The ZVIF1V2 has a single touch area, with the ability to customize the panel image according to the user's specific needs.

Sensors and Functionality

The device is equipped with an internal temperature sensor with a resolution of 0.1 °C and an accuracy of ±0.5 °C at 25 °C. In addition, it includes a brightness and proximity sensor that adjusts the backlighting of the touch areas according to the surrounding environment.

Inputs and Connections

The ZVIF1V2 has two analog-digital inputs that can be configured as binary inputs for sensors, potential-free buttons, inputs for temperature probes or motion detectors. The inputs can be connected via a pluggable screw terminal block.

Technical Specifications

Supply voltage: 21-31 VDC (typical 29 VDC SELV)
Maximum consumption: 14.1 mA @ 29 VDC (408.9 mW) [1]
Operating temperature: 0.. +55 °C
Storage temperature: -20.. +55 °C
Operating and storage humidity: 5.. 95%
Protection class: IP20, clean environment
Case material: PC+ABS FR V0 halogen free
Weight: 97 g
Dimensions: 81 x 81 x 31 mm (protrudes 9 mm from the wall)

Installation and Use

The device is designed to be flush-mounted on a square or round wall box. The installation procedure includes fixing the metal plate, connecting the KNX bus and the inputs, and verifying the stability of the fixing clips.

Indicators and Programming Methods

The ZVIF1V2 includes a programming LED that indicates the programming mode (red). The backlighting of the touch areas varies depending on the settings. The device can enter secure programming mode by pressing the programming button while connecting to the KNX bus.

Data Sheet
