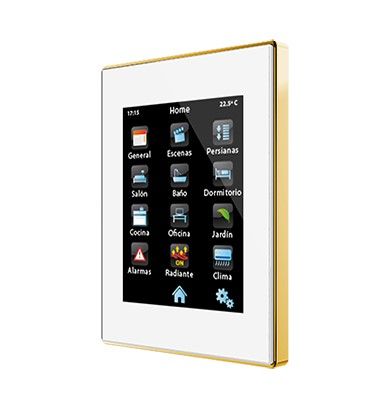

ZENNIO ZVI-Z41PRO-WG Touch Z41 Pro, gold frame, white

The ZENNIO ZVI-Z41PRO-WG touch panel is a capacitive control device designed to integrate perfectly into work and living environments, thanks to its minimalist aesthetics and timelessly elegant design.

Key Features

This panel has a 4.1-inch color display with a 3:4 aspect ratio, usable in both portrait and landscape orientation, facilitating the management and control of household functions.

Control Features

The Z41 Pro offers up to 96 control functions, allowing distributed communication within the smart home. It includes an internal clock with battery and a USB port for software updates.

Connectivity and Remote Control

The panel is equipped with an IP port that allows remote control via smartphone or tablet through free mobile apps. In addition, it includes two highly functional analog-digital inputs.

accessories

• Temperature probe
• Motion sensor

Technical Specifications

The required external power supply is between 12-29V DC, with a current consumption of 76mA at 24V DC. The panel operates in the temperature range from 0°C to 45°C.

Food and Consumption

• KNX power supply: 29V DC
• KNX power consumption: 6mA @ 29V DC
• External power supply: 12-29V DC
• External current consumption: 76mA @ 24V DC

Temperature sensor

• Measurement range: -10°C to 50°C
• Resolution: 0.1°C
• Sensor accuracy at 25°C: 1%

Internal clock

• Resolution: 1 minute on the display/1 second on the KNX bus
• Accuracy: 30 ppm
• Power supply: CR1225 3V battery
• Date/time setting: Manual (from the screen) or automatic (via KNX clock telegrams on the bus)

Inputs

• Number of common inputs: 2
• Input voltage: +3.3V DC for the common
• Input current: 1.0mA @ 3.3V DC (for each input)
• Input impedance: Approx. 3.3kΩ
• Switching type: Dry voltage contacts between input and common
• Connection method: Screw terminal for cable
• Maximum cable length: 30 m
• NTC probe length: 10.5 m
• NTC probe accuracy at 25°C: 0.5°C
• Temperature measurement accuracy: 0.1°C
• Cable cross-section: 0.15 mm² to 20.5 mm² (22-12 AWG)
• Response Time: Max 10ms
