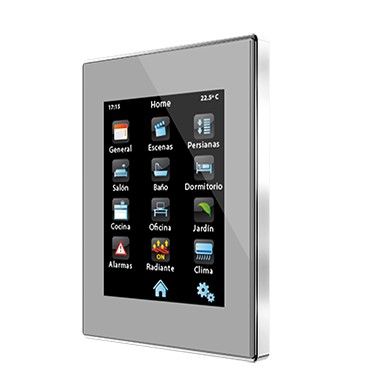

ZENNIO ZVI-Z41PRO-SP Touch Z41 Pro, PVC silver frame

The ZENNIO ZVI-Z41PRO-SP capacitive touch panel represents a significant step forward in digital home control. Its minimalist aesthetic, characterized by simple shapes, leads to a timelessly design that facilitates integration into work and living environments.

Key Features

The Z41 Pro has a 4.1-inch color display (3:4 ratio) that can be used in portrait or landscape orientation, making management and enjoyment easier. This panel supports up to 96 control functions, enabling distributed communication within the smart home.

Functionality

• It includes an internal clock with battery and a USB port for program updates.
• It has an IP port for remote control from a smartphone or tablet using free mobile apps.
• Includes 2 highly functional analog-digital inputs.
• Available accessories: temperature probe and motion sensor.

Technical Specifications

• Power supply: 12-29VDC.
• KNX power consumption: 6mA @ 29VDC.
• External current consumption: 76mA @ 24VDC.
• Operating temperature: 0°C to 45°C.
• Mounting: Vertical position, with the temperature sensor at the bottom. Magnetic attachment.
• Internal temperature sensor: Measures from -10°C to 50°C, resolution 0.1°C, accuracy @ 25°C 1%.
• Internal clock: Resolution 1 minute on the display/1 second on the KNX bus, accuracy 30 ppm, powered by a CR1225 3V battery.
• Inputs: 2 inputs per municipality, input voltage +3.3V DC, input current 1.0mA @ 3.3V DC, input impedance approx. 3.3kΩ.

Project characteristics

• PC-ABS frame, also available in aluminum, gold, chrome or brass.
• TFT color display with 16 million colors.
• Support for temperature regulation and measurement.
• Full data saving in the event of a power failure.
• Compliance with CE directives.

Accessories and Connections

• RJ45 cable connector included.
• Mini USB A-B cable (not included).
• Connection via screw terminal for cables.
• Maximum cable length: 30 m.
• Length of the NTC probe: 10.5 m.
