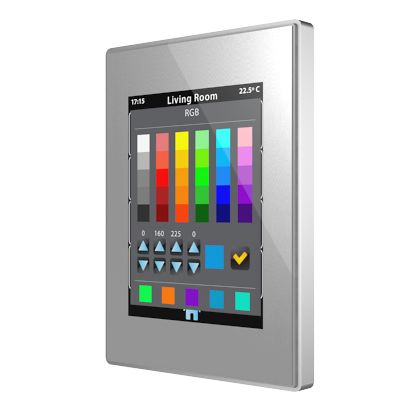

ZENNIO ZVI-Z41PRO-SB Touch Z41 Pro, silver brass frame

The ZENNIO ZVI-Z41PRO-SB capacitive touch panel represents a significant innovation in digital home control. Its minimalist aesthetic, characterized by simple shapes, gives a timelessly design that easily integrates into work and living environments.

Key Features

The panel has a 4.1-inch color display (3:4 ratio) that can be used in portrait or landscape mode, facilitating the management and enjoyment of the intelligent environment. The Z41 Pro supports up to 96 control functions, enabling distributed communication within the smart home.

Functionality

• It includes an internal clock with battery and a USB port for program updates.
• It has an IP port for remote control from a smartphone or tablet using free mobile apps.
• It includes 2 highly functional analog-digital inputs.
• Available accessories: temperature probe and motion sensor.

Technical Specifications

• External power supply: 12-29V DC.
• External current consumption: 76mA @ 24V DC.
• Operating temperature: 0°C to 45°C.
• Mounting: vertical position, with the temperature sensor at the bottom. Magnetic attachment.
• Minimum distances: keep away from hot and cold air flows for better temperature sensor measurements.

Internal Temperature Sensor

• Measurement range: -10°C to 50°C.
• Resolution: 0.1°C.
• Sensor accuracy at 25°C: 1%.
• Calibration: the temperature sensor must be calibrated through the application program based on the connected external power supply and the frequency of use.

Internal clock

• Resolution: 1 minute on the display/1 second on the KNX bus.
• Accuracy: 30 ppm.
• Power supply: CR1225 3V battery.
• Date/time setting: manual (set from the screen) or automatic (through KNX hourly telegrams on the bus).
• Response to power failure (bus or external power supply): does not affect the internal clock.
• Response to power restoration: displays the current time.

Inputs

• Number of entries per municipality: 2.
• Input voltage: +3.3V DC for the municipality.
• Input current: 1.0mA @ 3.3V DC (for each input).
• Input impedance: about 3.3kΩ.
• Switching type: dry contacts between input and common.
• Connection method: screw terminal for cable
• Maximum cable length: 30 m.
• Length of the NTC probe: 10.5 m.
• Accuracy of the NTC probe at 25°C: 0.5°C.
• Temperature measurement accuracy: 0.1°C.
• Cable cross-section: 0.15 mm² to 20.5 mm² (22-12 AWG).
• Response time: 10 ms maximum.

The ZENNIO ZVI-Z41PRO-SB panel is available in various colors, including white, silver and anthracite, and offers frame options in polycarbonate, aluminum, gold, chrome or brass.
