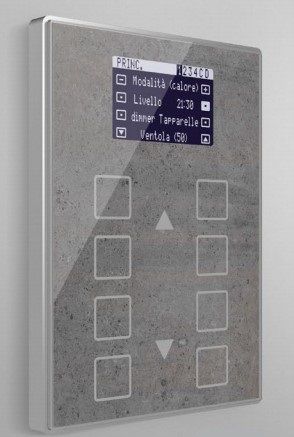

ZENNIO ZVI-TMDV-P TMDV room controller, PVC frame, custom

The ZENNIO ZVI-TMDV-P environment controller, known as TMD-Display View, is a complete and customizable solution for managing various systems in environments such as hotels, offices or any other space where it is necessary to control climate, lighting, curtains and other devices.

Key Features

This device has a 1.8-inch backlit display with a resolution of 128x64 pixels, offering a clear display of control information and object states.

Control Features

• Climate management, audio, curtains, lights and other functions distributed over up to 4 pages accessible by pressing or scrolling on the central area of the panel.
• Thermostat function and internal temperature sensor.
• Two analog/digital inputs for the integration of external accessories such as temperature probes or motion sensors.

User Interface

• 8 capacitive buttons that can operate as individual or paired controls, with LED indicators for each button.
• Possibility to customize the front glass design with professional printing on high-strength tempered glass.
• Screensaver function and the ability to lock/unlock the touch panel using binary commands or scenes.

Configuration and Versatility

• The buttons can be configured to perform different functions depending on the page selected, including switches, indicators, counters, scalers, enumerators, curtains, light regulators, and much more.
• Possibility to configure optopaired inputs such as switches, sensors, buttons or temperature probes.

Technical Specifications

• Nominal voltage: 29.00 Volts.
• Minimum ambient temperature: 5.00°C, maximum: 40.00°C.
• Operating humidity: 5% - 95% RH (without condensation).
• Material: Aluminum.
• Frame color: Aluminum, Gold, Polycarbonate, Chrome.
• Color: Black, White, Custom Design.
• Protection: IP20.
• Bus system: KNX TP (Twisted Pair).
