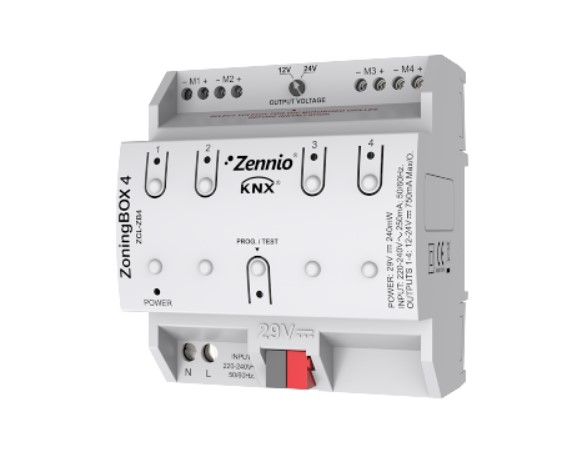

ZENNIO ZCL-ZB4 ZoningBox 4 - Ducted air conditioning actuator for up to 4 zones

The ZENNIO ZCL-ZB4 is an actuator for the zonal control of channel air conditioning systems, designed to manage up to 4 different zones.

Technical characteristics

This actuator is specifically designed to be integrated into KNX automation systems, ensuring efficient and customizable climate management in different environments.

Main Functionalities

• Zonal control for channel air conditioning systems with up to 4 zones.
• Compatibility with the KNX protocol, allowing complete integration with other system devices.
• DIN-Rail actuator, easy to install and configure.
• Ability to manage different independent logical functions, optimizing the control of the air conditioning system.

Technical Specifications

• Power supply: compatible with the KNX system.
• Interface: DIN-Rail (4 units).
• Outputs: 4 individual outputs for zone control.
• Logic functions: 20 independent logical functions.

Applications

The ZENNIO ZCL-ZB4 is ideal for applications in commercial, residential and industrial buildings where precise and personalized climate control is required in different areas.

Installation and Configuration

The actuator is designed to be easily installed on a standard DIN-Rail and can be configured using the ETS Application Program (compatible with ETS5/ETS6).
