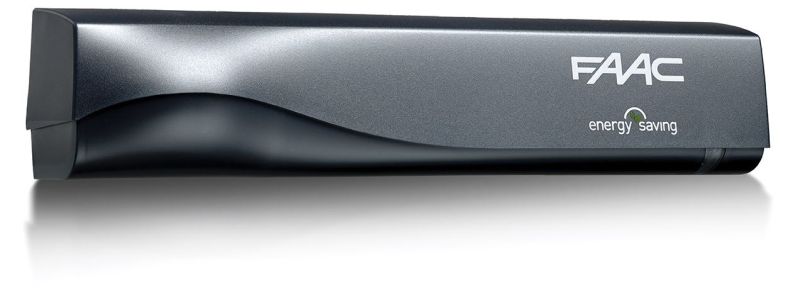

FAAC 105104 UNIDIRECTIONAL RADAR SENSOR WITH INFRARED ESCAPE SAFETY-KIT XDT3

MT Code: FAA_105104
Manufacturer Code: 105104
Brand: FAAC

Description

UNIDIRECTIONAL RADAR SENSOR WITH INFRARED ESCAPE SAFETY-KIT XDT3

Unidirectional dual-technology “Movement and Presence” radar for escape routes

TECHNICAL CHARACTERISTICS: 12 V supply voltage - 24 V ~ +/ -10%; 12 V - 30 V +/ -10% (to be operated only with power supply units compatible with SELV standards) Max power < 2.5 W Installation height 2 m to 3.5 m (local regulations may have an impact on the recommended mounting height) Operating ambient temperature -25°C to +55°C; 0-95% relative humidity, non-condensing Degree of protection IP54 Noise < 70 dB Life expectancy 20 years Motion detection mode: Min. detection speed: 5 cm/s Presence: Standard response time: <200 ms (max.500 ms) Motion Technology: Microwave doppler radar; Emitted frequency: 24.150 GHz; Radiated power: < 20 dBm EIRP; Emitted power density: < 5 mW/cm² Presence: active infrared with background analysis; Spot: 5 cm x 5 cm (typ); Number of spots: max. 24 per curtain; Number of curtains: 2 type of output: SOLID STATE RELAY; 100 mA; 42 V ~/ FREQUENCY OUTPUT: Pulse signal (f= 100 Hz +/- 10%); CURRENT OUTPUT: Galvanically isolated DC current State in “no detection” current supply ON; Open circuit voltage: 6.5 V; State in “detection”: current supply OFF; Residual voltage in open circuit: < 500 m V Output type SOLID STATE RELAY (standard); 100 mA; 42 V ~/ Maintenance time: 0.3 to 1 s Low Presence Sensitivity monitoring input: < 1 V; Alta: > 10 V (max. 30 V); Response time of the required test: standard: < 5 ms

R&TTE Application Directives 1999/5/EC; MD 2006/42/EC; LVD 2006/95/EC; ROHS2 2011/65/EU

Movement Certifications: EN 12978; EN ISO 13849-1:2008 PL “d” CAT. 2; EN 16005:2012 Chapter 4.6.8; DIN 18650-1:2010 Chapter 5.7.4; AutSchr; BS 7036-1:1996 Chapter 7.3.2 (applicable only for frequency and DC outputs) Presence: EN 12978; EN ISO 13849-1:2008 PL “c” CAT. 2 (provided that the control system monitors at least once per cycle); EN 16005:2012 Chapter 4.6.8; DIN 18650-1:2010 Chapter 5.7.4; BS 701:36-1996 Chapter 8.1
