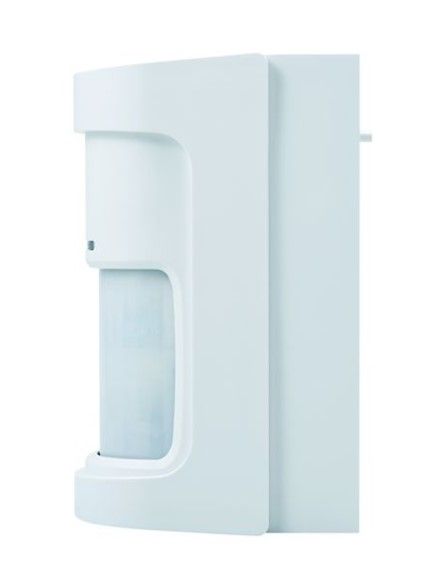

OPTEX OXWXSRAM WXS-RAM External Rev. 180 c/anti-masking

OPTEX OXWXSRAM WXS-RAM External Rev. 180 c/anti-masking

MT Code
HSA_OXWXSRAM
Manufacturer Code
OXWXSRAM
Brand
OPTEX
extra sconto di benvenuto
Description
Part of the Shield family, the WXS series consists of the latest sensors for outdoor intrusion detection at 180 degrees, equipped with flexibility in detection range and settings, as well as a low (0.8-1.2 m) or high (2 m) mounting option, active infrared sensors for self-learning and intelligent anti-masking functionality. Ideal as access protection or flat roof, for residential or commercial areas, the sensor is equipped with advanced Shield features, including double conductive shielding to avoid false alarms triggered by strong sunlight or RFI (Remote File Inclusion), and automatic approach testing. WXS-DAM is the wireless model. Please note that the wireless transmitter and battery are not included
.

Flexible mounting height
WXS outdoor intrusion sensors can be installed at low mounting, forming a flexible detection area of 2.5 to 12 m. They can also be mounted at a height of 2 m, creating a volumetric detection area with a detection range of up to 9 m. This option can be efficient to avoid vandalism or lens shielding
Two independent detection areas left/right In the low-mount configuration
, the sensors for

WXS intrusion detection has two completely independent 90-degree detection areas (left and right), which can be set at a different detection distance and sensitivity and can trigger independent alarm outputs, which is very useful for PTZ
camera activation.

Detection analysis and pet tolerance The WX Shield outdoor intrusion sensors are designed to
be tolerant to pets and not, which means that they do not activate if dogs, cats or birds are in the detection area, thus making them very stable. They also present the SMDA (Optex Super Multidimensional Analysis), which excludes environmental changes such as vegetation waving and shadows, making the sensor extremely reliable
.

Applications
    • Buildings
    • Roof/Ceiling
    • Access
    • Home
    • Garden
    • Garage
    Main
    features
    • up to 12 m, outdoor PIR with 180-degree coverage with 4PIR anti-masking
    • for detection at two levels left/right for animal tolerance Possibility to
    • select a low (0.8-1.2 m) or high (2 m) mounting. Left/right detection areas and independence of
    alarm outputs

  • Data Sheet
    Codice Produttore OXWXSRAM
    Brand OPTEX
