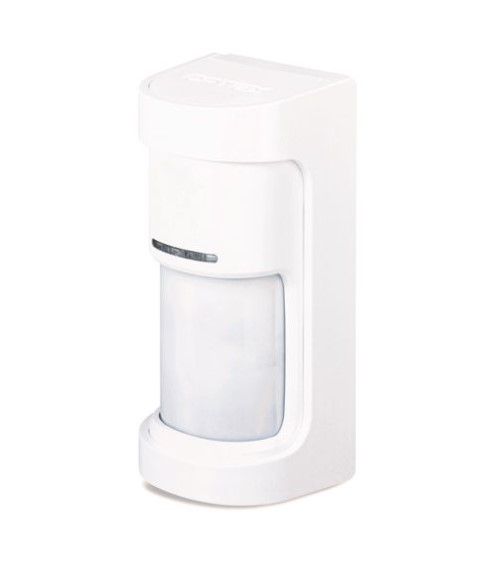

OPTEX OXWXSAM WXS-AM 180° external riv. w/ anti-masking

Part of the Shield family, the WXS series consists of the latest sensors for outdoor intrusion detection at 180 degrees, equipped with flexibility in detection range and settings, as well as a low (0.8-1.2 m) or high (2 m) mounting option, active infrared sensors for self-learning and intelligent anti-masking functionality. Ideal as access protection or flat roof, for residential or commercial areas, the sensor is equipped with advanced Shield features, including double conductive shielding to avoid false alarms triggered by strong sunlight or RFI (Remote File Inclusion), and automatic approach testing. WXS-AM is the connected model

Flexible mounting height

WXS outdoor intrusion sensors can be installed at low mounting, forming a flexible detection area of 2.5 to 12 m. They can also be mounted at a height of 2 m, creating a volumetric detection area with a detection range of up to 9 m. This option can be efficient to prevent

Two independent detection areas left/right

In the low-mount configuration, the WXS intrusion detection sensors have two completely independent 90-degree detection areas (left and right), which can be set at a different detection distance and sensitivity and can trigger independent alarm outputs, which is very useful for activating a PTZ camera

Detection analysis and pet tolerance The WX Shield outdoor intrusion sensors are designed to

be tolerant to pets and not, which means that they do not activate if dogs, cats or birds are in the detection area, thus making them very stable. They also present the SMDA (Optex Super Multidimensional Analysis), which excludes environmental changes such as vegetation waving and shadows, making the sensor extremely reliable

Applications
