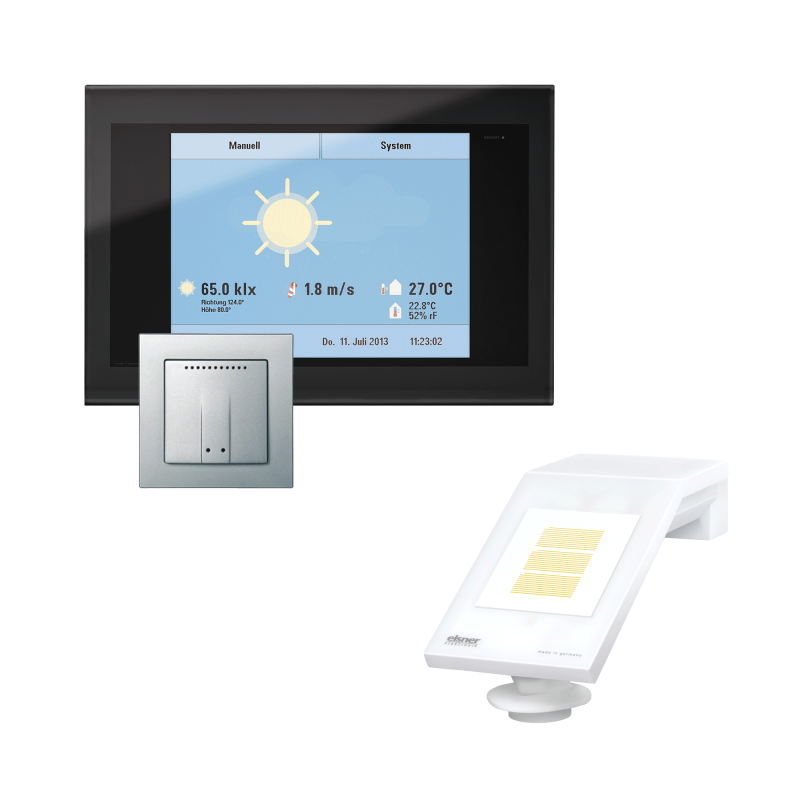

ELSNER 60208 WS1000 Style-8- black Building control system for 8 drives 230 V

<p/the ELSNER 60208 product, called WS1000 Style-8, is a control system for buildings and greenhouses that offers complete and customizable management of various devices.

Key Features

This system is equipped with a glass panel with an 8.4-inch touch screen display, characterized by an extremely flat and elegant design.

Display and Interface

In sleep mode, the display can display current weather data, be turned off or reduced to a minimum to save energy and not disturb the room environment. The display language is adjustable in English, German, French and Italian.

The display also includes an image frame function, which can be used via an SD card.

Outputs and Device Control

The WS1000 Style-8 system has 8 drive outputs, compatible with 230 V or potentially free motors. These outputs are suitable for controlling curtains, blinds, shutters, windows and sliding doors. You can connect multiple units in a control group using the group control relay.

The individual motors can be operated manually using additional buttons.

Sensors and Detectors

The system includes indoor radio-controlled sensors for measuring air temperature and humidity, with wireless data transfer to the central unit.

Motion and smoke detectors are also supported, which can close windows and retract curtains in the event of an alarm.

Control Functionality

• All devices and units can be named individually (for example, “East Tent”).
• After manual operation, the devices can be automatically returned to automatic mode after a settable delay (for example, 20 minutes) or at a fixed time (for example, at 3 in the morning).
• The function of the arrows can be adapted to the actual direction of movement of the devices.
• The settings menu can be protected with an access code to prevent unauthorized changes.

Other Features

The system supports the connection of 4 external manual buttons and allows the manual operation of all devices with the Remo 8 remote control (available separately).

In addition, it includes a weather station to collect data on wind speed, precipitation, temperature and brightness, including a GPS receiver for calculating the position of the sun.

You can set the limit value for detecting 'dusk' to control lights and curtains for privacy.
