ELSNER 60201 WS1000 Style-4- White building control system for 4 230 V drives

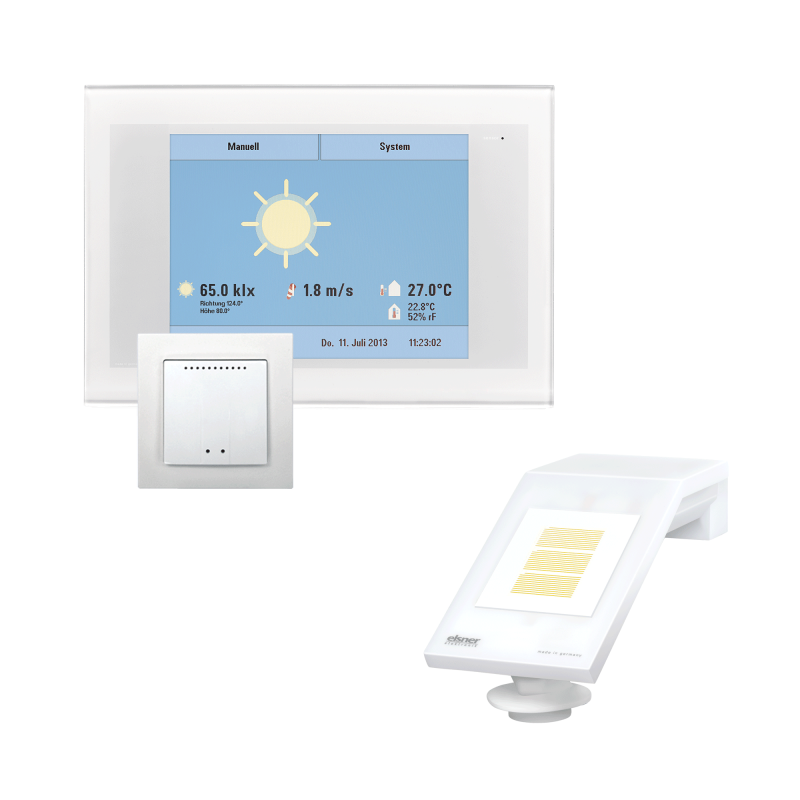

The ELSNER 60201 control system is an innovative solution for managing curtains, blinds, shutters, windows and sliding doors. This device is characterized by an extremely flat design thanks to the magnetic mount and includes a glass panel with a 5.7-inch touch screen display.

Key Features

• 5.7-inch touch screen display with the ability to view current weather data or to turn off or decrease the brightness to save energy and not disturb the room environment.
• Available languages: English, German, French, Italian.
• Picture frame function via SD card.
• Multifunctional outputs (from 0 to 4 depending on the model) to operate curtains, blinds, shutters, windows and sliding doors at 230 V or potentially free.
• Centralized control of multiple drive units using the IMSG 230 motor control unit.

Curtain and Blinds Management

• Automatic adjustment of the angle of the curtain blades based on the position of the sun, calculated based on the location, date and time.
• 'Slat Turning' and 'Canvas Tightening' functions for curtains and awnings respectively, to correct the position after a movement.

Integration with Other Systems

• Multifunctional outputs for heating, cooling, supply air, alarm systems, lighting, gutter heating or dimmers.
• Multifunctional inputs for motion detectors, smoke detectors, climate control detectors (independent heating/cooling status), closed contacts (for sliding doors) or pulses for automatic resets.

Sensors and Reset Functions

• Indoor radio-controlled sensor for measuring air temperature and humidity with wireless data transfer to the central unit.
• All drive units can be named individually (for example, “East Tent”).
• Automatic resets that return the drive units and devices to automatic mode after a manual operation, with the possibility of setting a delay (for example 20 minutes) or a fixed time point (for example at 3 in the morning).

Protection and Personalization

• Settings menu protected by an access code to prevent unauthorized changes.
• Arrow function adaptable to the real direction of movement (manual direction), for example for curtains that extend from bottom to top.
