ELSNER 60206 WS1000 Style-4- black Building control system for 4 drives 230 V

ELSNER 60206 - WS1000 Style-4 Black

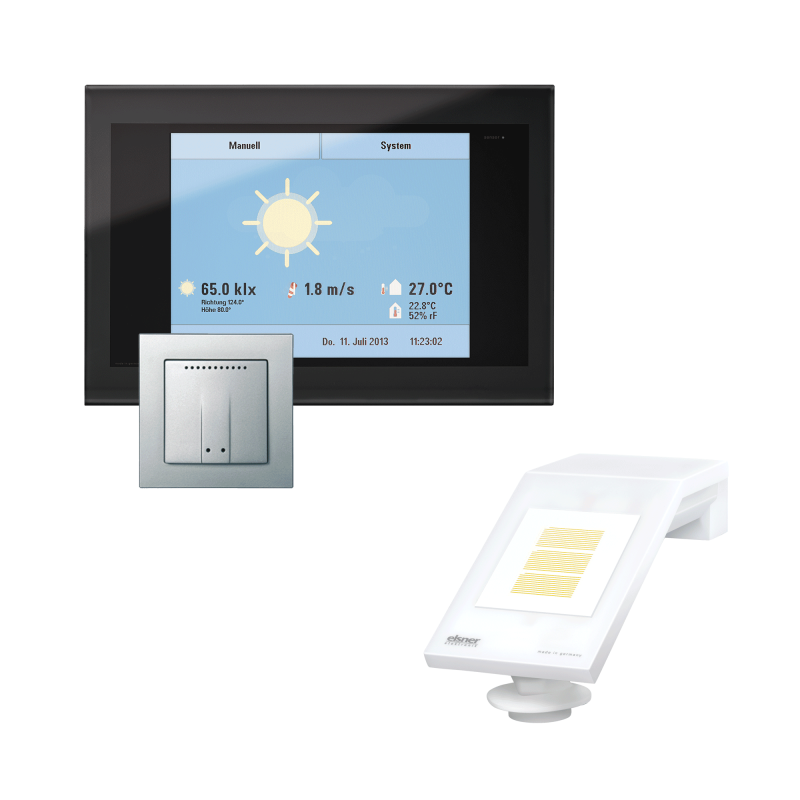

Elsner Elektronik's WS1000 Style-4 black control system is designed to centrally manage various shading, ventilation, heating, air conditioning and lighting devices. This system offers a complete and customizable solution for building automation needs.

Key Features

The WS1000 Style-4 system features an 8.4-inch crystal touch screen with an extremely flat design. The screen can display current weather data, be turned off or reduced to a minimum to save energy and not disturb the room environment.

Outputs and Controls

• 4 outputs for 230 V drives or free potentials, suitable for curtains, blinds, windows and sliding doors.
• Optional connection of multiple drives in a group (group control relay).
• Centralized control of multiple drives in a drive group using the IMSG 230 motor control unit.
• The individual motors can be operated manually using additional buttons.

Sensors and Functionality

• Radio-controlled indoor sensor for measuring air temperature and humidity, with wireless data transfer to the switchboard.
• All drives and units can be named individually (for example, “East Blind”).
• Automatic recovery of drives and devices in automatic mode after manual operation, with the possibility of setting a delay (for example, 20 minutes after manual operation) or a fixed time point (for example, at 3 in the morning).
• Protect the settings menu with an access code to prevent unauthorized changes.

Language and Personalization

• Adjustable screen language (English, German, French, Italian).
• Frame function for images (via SD card).
• Adaptation of the function of the arrow keys to the real direction of movement (manual direction), for example for shutters that extend from bottom to top.

Other Features

• Glass and plastic case, available in black or grey/white.
• Dimensions of the front of the screen: 270 mm x 185 mm, mounting depth: 9 mm, hidden box: 254 mm x 171 mm x 85 mm.
• Total weight: about 2.1 kg.
• Ambient temperature: +5... +40°C.
• Non-condensing ambient humidity (RH): 0... 95%.
• Storage temperature: -25... +70°C.
• Radio frequency: 868.0... 868.6 MHz.
