ELSNER 60204 WS1000 Style-10- White building control system for 10 230 V drives

ELSNER WS1 Style Product Description

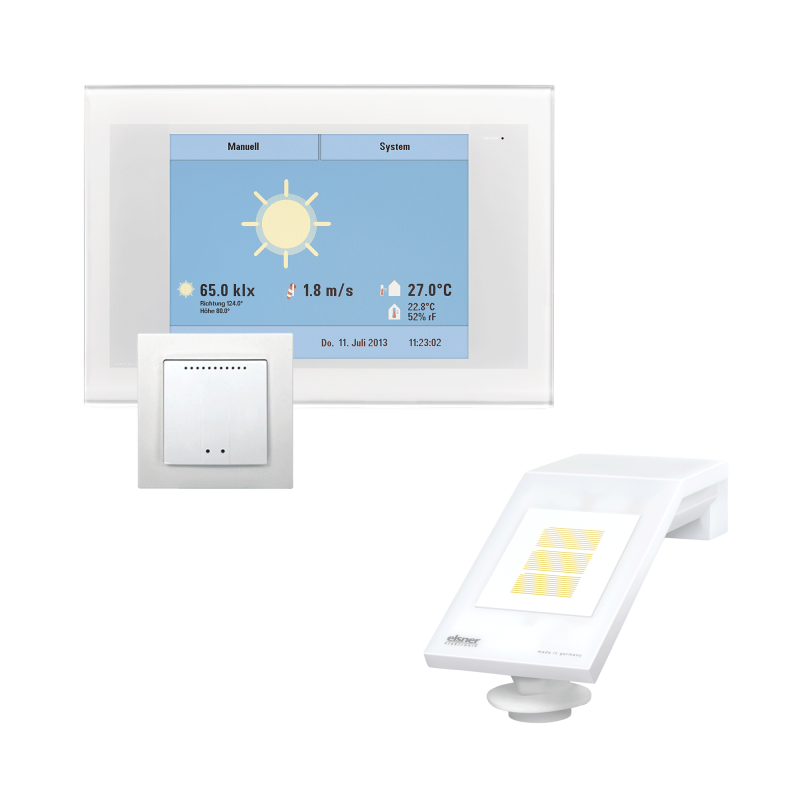

The ELSNER WS1 Style product is an innovative control system designed for the centralized management of various types of domestic and industrial automation devices. This device is characterized by an extremely flat design thanks to the magnetic mount and includes a glass plate with an integrated 5.7-inch touchscreen.

Key Features

• In sleep mode, the screen can display current weather data, be turned off or reduced to a minimum to save energy and not disturb the room environment.
• Adjustable display language (English, German, French, Italian).
• Picture frame function via SD card.
• Driving outputs from 0 to 4 (depending on the model), available for 230 V or potentially free motors. Suitable for curtains, blinds, shutters, windows and sliding doors. Option to connect multiple units in a group (group control relay).
• Centralized control of multiple units in a steering group using the IMSG 230 motor control unit. The individual motors can also be operated manually and separately using additional buttons.

Technical Specifications

• Case: glass, plastic
• Colors: white/gray, dark grey/black
• Degree of protection: IP20
• Dimensions:
  • Front display (W × H): 181 mm × 131 mm
  • Mounting depth: 8 mm
  • Plenum box (W × H × D): 172 mm × 122 mm × 81 mm
• Total weight: about 1.25 kg
• Ambient temperature: +5... +40°C
• Non-condensing ambient humidity (RH): 0..95%
• Storage temperature: -25... +70°C
• Overvoltage category: III
• Protection class: II
• Pollution degree: 2
• Wireless radio frequency channels: 868.2 MHz

Power and Outputs

• Solid conductor cross-section, with fine wires: 0.5... 1.5 mm²
• Stripping length: 7 mm
• Multifunctional outputs:
  • Normally open contact: Micro Contact (μl)
  • Potentially free: ≤ 230 V AC | ≤ 30 V DC
  • Resistive: 2 A
  • LED lamps with integrated ballast: 15 W
  • Electronic ballasts: 36 W
• Driving outputs:
  • Normally open contact: Micro Contact (μl)
  • Maximum motor load on a single drive output: 500 VA (2.17 A)
  • Sum of the loads of all driving outputs and of the loads connected to LF: 1000 VA (4.3 A)
