ELSNER 60243 WS1000 Connect-8 Building control system for 8 drives 230 V

The ELSNER 60243 building control system, known as WS1000 Connect-8, is a complete solution for managing various home automation and environmental control systems.

Key Features

This system includes a central unit with a 10.1 inch color touch display, used for manual operation, system configuration, and setting basic and automatic functions.

Connectivity and Remote Access

The network connection is possible both via LAN and via WLAN, allowing remote access for system configuration and diagnostics, subject to user authorization.

Control functions

• Output motors (8 pieces) for controlling curtains, blinds, blinds, windows, sliding roofs and sliding doors.
• 4 multifunction outputs for controlling lights (switching or adjusting), heating (on/off), air conditioning (on/off) and fans (on/off).
• 4 multifunction inputs for motion detectors, smoke detectors, climate detectors and safety contacts.
• 10 key inputs for conventional wind sensors and other devices on site.
• 32 radio channels for devices with Elsner RF protocol.

Sensors and Accessories

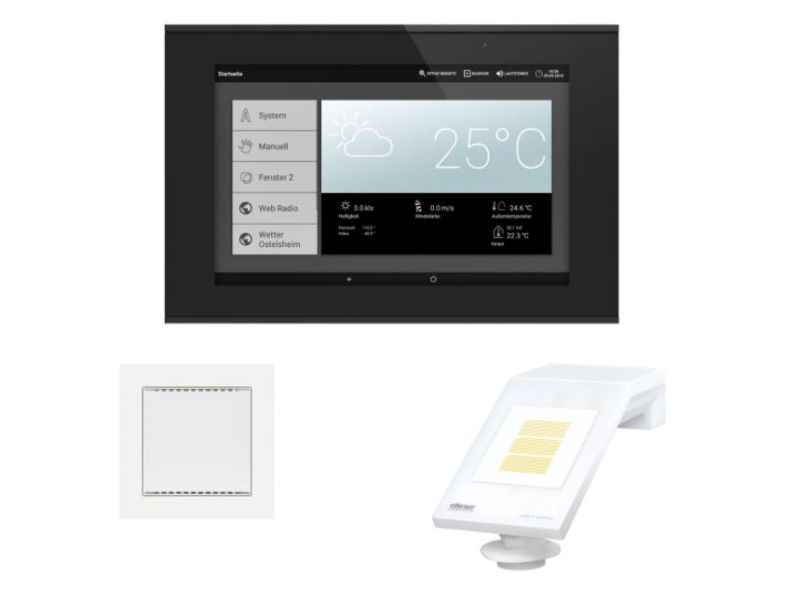

The system includes WGTH-UP sensors for measuring temperature and humidity in the room, as well as a P04i-GPS weather station to detect precipitation, wind speed and brightness.

Additional Features

• Integrated browser for viewing websites and streaming.
• Built-in speaker with 4 tweeters and 1 broadband speaker.
• Storage of settings on SD card and screensaver function with slide show.
• 16 preset scenes to call up movement positions and individual switching states, creating a suitable atmosphere with a single touch of a button ('TV', 'Dinner', etc.).

Technical Specifications

• Supply voltage: 230 V AC/50 Hz.
• Power consumption: ≤ 17W
• WLAN transmission frequency: 2400... 2483.5 MHz/≤ 80 mW, 5150... 5725 MHz/≤ 15 mW.
• Elsner RF transmission frequency: 868.0... 868.6 MHz/≤ 25 mW.
• Dimensions of the central unit: about 270 x 185 mm, installation depth about 9 mm.
