ELSNER 60242 WS1000 Connect-6 Building control system for 6 drives 230 V

The ELSNER 60242 building control system, called WS1000 Connect-6, is designed to manage up to 6 230 V drives. This system is ideal for home and building automation, offering a complete and integrated management of various devices.

Key Features

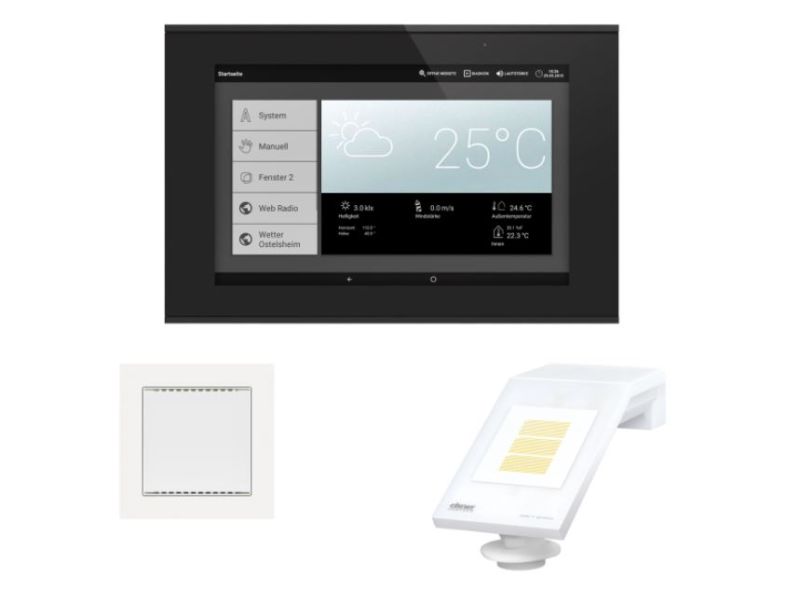

The WS1000 Connect-6 includes a central control unit with display, which allows the intuitive management of all connected devices. The system is equipped with sensors for room climate and weather data, ensuring precise and personalized control.

Control Functionality

• Management of up to 6 230 V drives, suitable for various types of devices such as fans, relays, dimmers and motor control devices.
• Wireless remote control via 868.2 MHz RF interface, compatible with all Elsner RF actuators.
• Integration with up to 32 Elsner RF control devices/sensors.
• Optional connection to WLAN for use via app.

Sensors and Monitoring

• Record temperature, precipitation, wind speed and brightness thanks to integrated sensors.
• GPS receiver for precise location.
• Automatic lighting control based on brightness and time.
• Automatic heating control based on temperature and time.

Design and Installation

• Plastic/glass case, black, with white internal sensor.
• Recessed or wall-mounted installation.
• Approximate dimensions: 279 x 185 mm (width x height), variable installation depth.

Power and Battery

• 230 V AC power supply.
• Built-in rechargeable battery for the wireless transmitter, rechargeable via USB Micro B cable.

Elsner Elektronik's WS1000 Connect-6 offers a complete and flexible solution for building management, ensuring a comfortable and efficient environment.
