ELSNER 60127 WS1000 Color-8 Aluminum Building Control System for 8 230 V Drives

The ELSNER 60127 control system, also known as WS1000, is a versatile and sophisticated device designed for the integrated management of various home and commercial automation systems.

Key Features

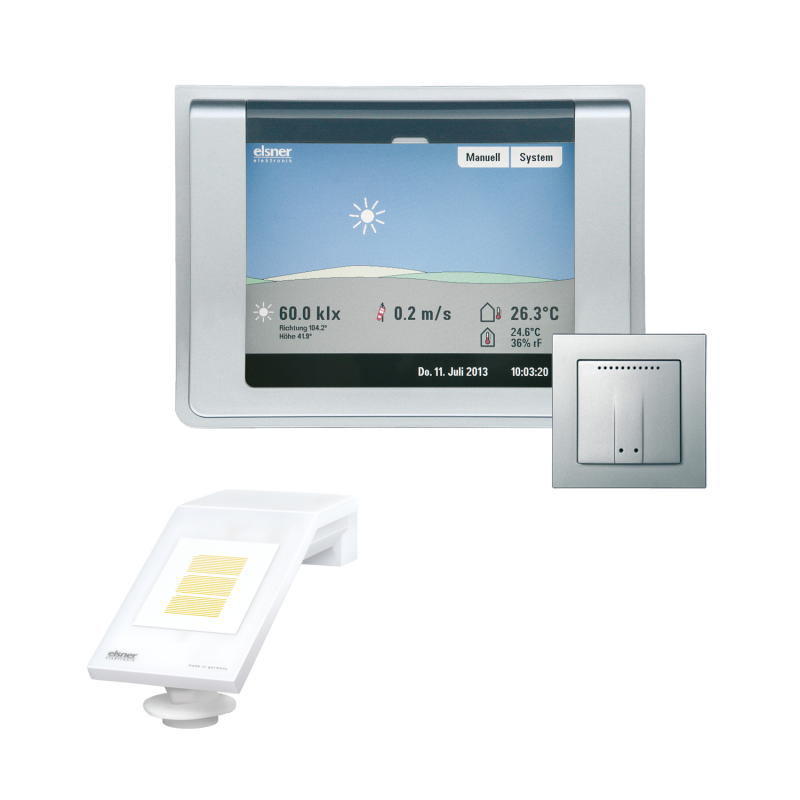

This system is equipped with a glass panel with an 8.4-inch touch screen display, characterized by an extremely flat and elegant design.

Interface and Customization

The display interface can be set in different languages, including English, German, French and Italian. In sleep mode, the display can display current weather data or be turned off or dimmed to save energy and not disturb the room environment.

In addition, the device includes an image frame function, which can be used via an SD card.

Engine Control

The system offers 4 to 10 motor outputs (depending on the model), compatible with 230 V or potentially free motors, suitable for curtains, blinds, windows and sliding doors. It is possible to connect multiple units into a group and control them centrally using the IMSG 230 motor control unit.

The individual motors can be operated manually using additional buttons, and each motor group can be individually named (for example, “East Shutter”).

Sensors and Safety

The system includes an indoor radio-controlled sensor that measures air temperature and humidity, transferring wireless data to the central unit. The energy supply to the sensor is via cable.

In addition, the system supports motion and smoke detectors, which can activate specific actions such as closing windows in case of alarm or removing curtains and starting ventilation in case of smoke.

Control and Security Functions

After manual operation, the system can automatically restore units and devices to automatic mode after a set time (for example, 20 minutes) or to a fixed time (for example, at 3 in the morning). This recovery can be activated separately for each unit group.

The function of the arrows can be adapted to the real direction of movement of the devices, for example for shutters that extend from the bottom up.

The settings menu can be protected with an access code to prevent unauthorized changes.

Technical characteristics

• Casing: glass, plastic
• Colors: white/grey, dark grey/black, aluminum/graphite
• Degree of protection: IP20
• Dimensions: 270 mm x 185 mm (front display), 9 mm (mounting depth), 254 mm x 171 mm x 85 mm (plenum box)
• Total weight: about 2.1 kg
• Ambient temperature: +5°C to +40°C
• Ambient humidity (non-condensing RH): 0% to 95%
• Storage temperature: -25°C to +70°C
• Overvoltage category: III
• Protection class: II
• Pollution degree: 2
• Radio frequency: 868.0... 868.6 MHz
