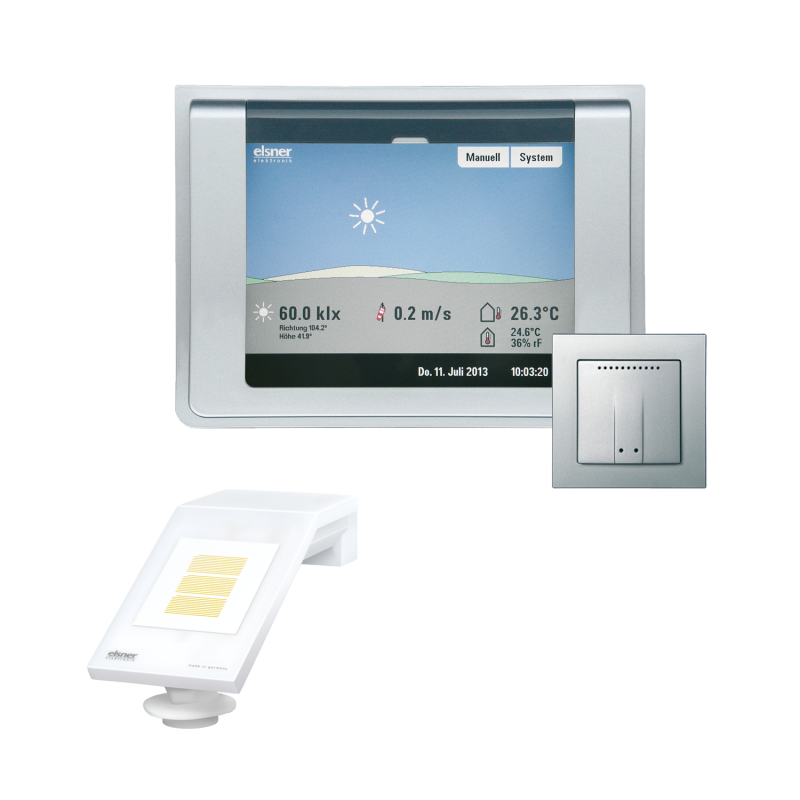

ELSNER 60126 WS1000 Color-6 aluminum building control system for 6 230 V drives

The ELSNER 60126 product, known as WS1000 Color-6, is a home automation control system that offers a wide range of functionality to manage various aspects of the home environment.

Display and Interface

This device is equipped with an 8.4-inch animated color graphic display with touch function, which allows easy and intuitive operation without the need for additional keys. Its elegant 'floating' style case integrates perfectly with any environment.

Control Functionality

The WS1000 Color-6 has 6 multifunctional 230 V outputs, which can be used to control heating, air conditioning, ventilation, alarm, lighting, gutter heating or dimmer systems. In addition, there are 4 multifunctional inputs for motion detectors, smoke detectors, climate control sensors, closed contacts (for example for sliding doors) or triggers for automatic resets.

Curtain and Blinds Management

The system includes specific functions for managing curtains and blinds, such as 'Slat Turning' and 'Canvas Tightening', which allow precise adjustments for the correct position after movements.

Security and Emergencies

The WS1000 Color-6 integrates security features such as closing windows in the event of a motion detector alarm and retracting curtains with activation of ventilation in the event of a smoke detector alarm.

Technical characteristics

• Case: Glass and plastic
• Colors: aluminium/graphite grey (RAL 9006/RAL 7024)
• Degree of protection: IP20
• Central Unit Dimensions (W × H × D): 250 mm × 182 mm × 43 mm
• Total weight: About 2.1 kg
• Ambient temperature: +5... +40°C
• Non-condensing ambient humidity (RH): 0..95%
• Storage temperature: -25... +70°C
• Overvoltage category: III
• Protection class: II

Other Features

The system allows you to name all units and devices individually (for example “East Tent”), to set automatic resets after manual operations and to protect the settings menu with an access code to avoid unauthorized changes.
