ELSNER 60128 WS1000 Color-10 Aluminum Building Control System for 10 230 V Drives

ELSNER 60128 Product Description

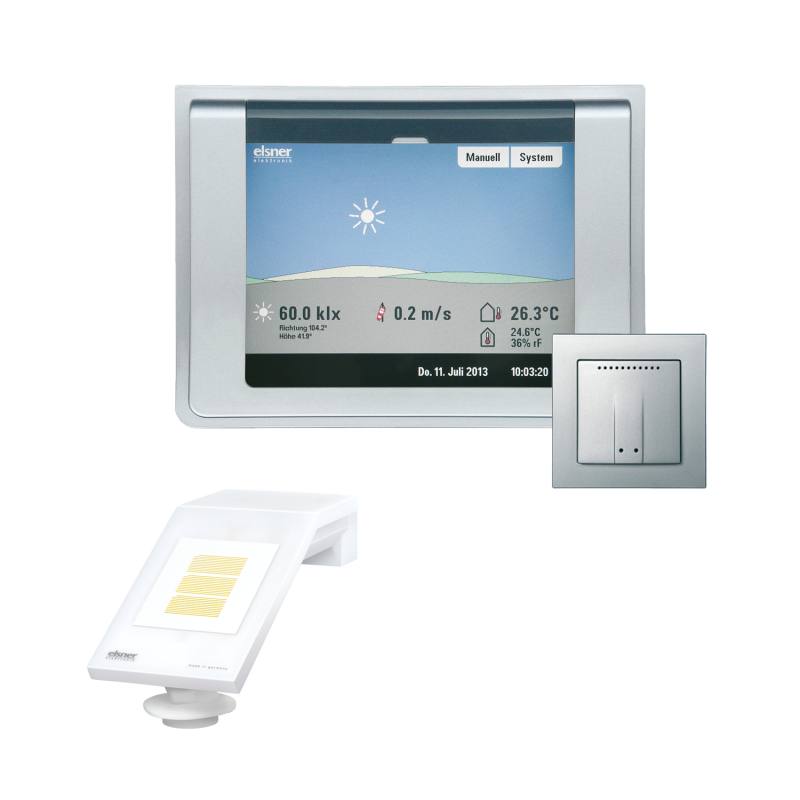

The ELSNER 60128 model, known as WS1000 Color-10, is a control system for home and building automation, characterized by a series of innovative features and high-quality technologies.

Display and User Interface

This device is equipped with an 8.4-inch animated color graphic display with touch function, which allows easy and intuitive operation without the need for additional keys. Its elegant case with a “floating” style design integrates perfectly into any environment.

Multifunctional Output and Input

The WS1000 Color-10 has 10 multifunctional 230 V outputs, usable for controlling curtains, awning, blinds, windows and sliding doors. In addition, there are 4 multifunctional inputs for motion detectors, smoke detectors, climate sensors and closed contacts for sliding doors.

Control functions

• Centralized control of multiple drives in a drive group using the IMSG 230 motor control unit.
• “Slat Turning” and “Canvas Tightening” functions for curtains and awning, with the possibility of adjusting the position after a movement.
• Automatic reset of drives and devices after manual operation, with the possibility of setting a delay (for example, 20 minutes) or a fixed time point (for example, at 3 in the morning).
• Protect the settings menu with an access code to prevent unauthorized changes.
• Adaptation of the function of the directional arrows to the real sense of movement of the drives.

Safety Sensors and Systems

The device includes a radio-controlled sensor for measuring air temperature and humidity, with wireless data transfer to the central system. In addition, motion and smoke detectors can activate safety actions such as closing windows or removing curtains in escape routes and starting ventilation to extract smoke.

Other Features

• Possibility to name all drives and units individually (for example, “East Tent”).
• Adjustable display languages (English, German, French, Italian).
• Picture frame function via SD card.
• Display that can be turned off, halved or display weather data in sleep mode to save energy and not disturb the room environment.

Technical characteristics

• Case: aluminium/graphite grey
• Degree of protection: IP20.
• Front display dimensions: 270 mm x 185 mm, mounting depth: 9 mm.
• Total weight: about 2.1 kg
• Ambient temperature: +5... +40°C.
• Non-condensing ambient humidity (RH): 0...95%.
• Storage temperature: -25... +70°C.
• Overvoltage category: III.
• Protection class: II.
• Degree of pollution: 2.
• Radio frequency: 868.0... 868.6 MHz.
