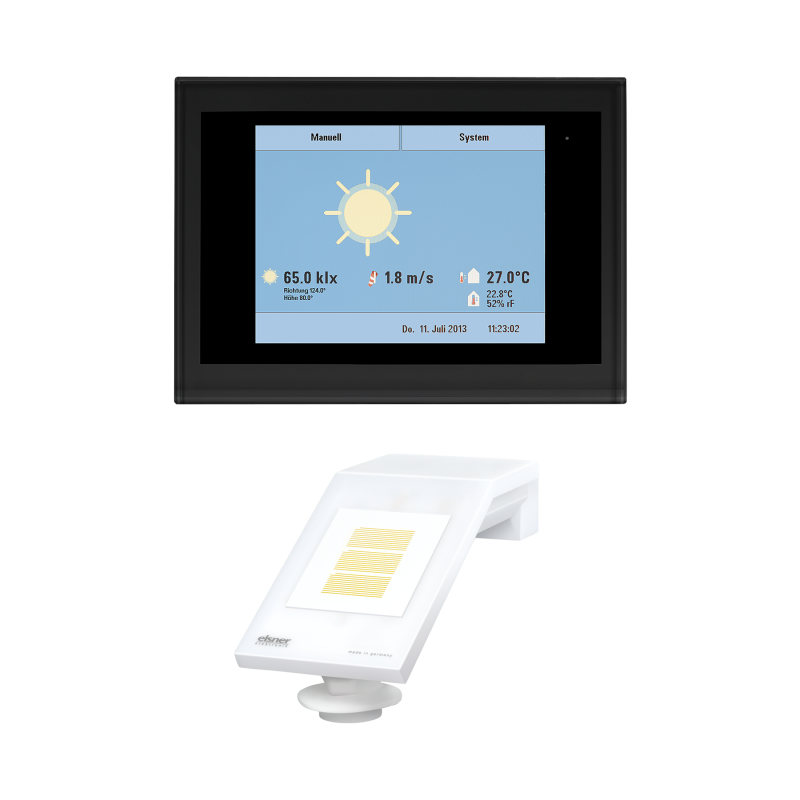

ELSNER 60189 WS1 Style-4- black Building control system for 4 drives 230 V

The ELSNER 60189 control system, called WS1 Style-4, is a sophisticated device designed for the centralized management of various domestic and industrial automation units.

Key Features

This system is equipped with a glass panel with a 5.7-inch touch screen display, characterized by an extremely flat design thanks to the magnetic mount.

Display functions

• In sleep mode, the display can display current weather data, be turned off or reduced to a minimum to save energy and not disturb the room environment.
• Adjustable display language (English, German, French, Italian).
• Picture frame function via SD card.

Output and Controls

• 0-4 outputs per drives (model dependent), available for 230 V or potentially free drives. Suitable for curtains, blinds, shutters, windows and sliding doors. Option for connecting multiple drives in a group (group control relay).
• Centralized control of multiple drives in a drive group using the IMSG 230 motor control unit. The individual motors can also be operated manually and separately using additional buttons.
• 2 multifunctional outputs for heating, cooling, supply air, alarm systems, lighting, gutter heating or dimmers.
• 2 multifunctional inputs for motion detectors, smoke detectors, climate control detectors (independent heating/cooling status), closed contacts (for sliding doors) or triggers for automatic resets.

Special Features

• Automatic adjustment of the angle of the blinds: the slats can be positioned according to the position of the sun to allow maximum light to enter the room without exposing it to direct sunlight.
• “Slat Turning” and “Canvas Tightening” functions for blinds and curtains respectively (adjustments for the correct position after a movement are necessary for some shading motors).

Personalization and Security

• All drives and units can be named individually (for example, “East Blind”).
• After a manual operation, automatic resets reset the drives and devices to automatic mode. You can set a delay (for example 20 minutes after the manual operation) or a fixed time point (for example at 3 in the morning). The resets can be activated separately for each drive group.
• The settings menu can be protected with an access code against unauthorized changes.
• The function of the arrow keys can be adapted to the actual direction of movement (manual direction), for example for shutters that extend from bottom to top.

Technical characteristics

• Glass and plastic case.
• Available colors: white/gray, dark grey/black.
• Degree of protection IP20.
• Front display size (W × H): 181 mm × 131 mm. Mounting depth: 8 mm. Dimensions of the plenum box (L × H × D): 172 mm × 122 mm × 81 mm.
• Total weight: about 1.25 kg.
• Ambient temperature: +5... +40°C.
• Non-condensing ambient humidity (RH): 0...95%.
• Storage temperature: -25... +70°C.
• Overvoltage category: III.
• Protection class: II.
• Degree of pollution: 2.
• Radio frequency: 868.2 MHz.
