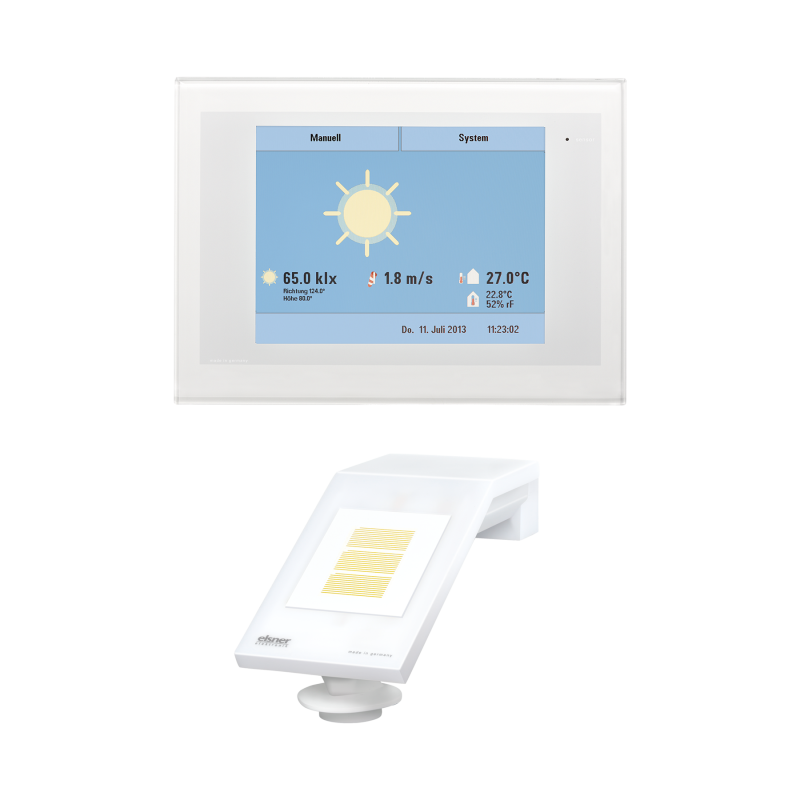

ELSNER 60183 WS1 Style-3-white building control system for 3 230 V drives

The ELSNER 60183 control system, called WS1 Style-3, is a specialized device for managing shading, ventilation, heating, air conditioning and lighting systems. This system is designed to provide centralized and efficient management of various household and commercial devices.

Key Features

The WS1 Style-3 has an extremely flat design thanks to the magnetic mount and includes a glass panel with an integrated 5.7-inch touchscreen.

Display Features

• In sleep mode, the screen can display current weather data, be turned off or reduced to a minimum to save energy and not disturb the room environment.
• Adjustable display language (English, German, French, Italian).
• Photo frame function (via SD card).

Device Control

• Guide outputs for 3 230 V devices (depending on the model), usable for curtains, blinds, windows and sliding doors.
• Centralized control of multiple devices in a steering group using the IMSG 230 motor control unit. The individual motors can also be manually operated separately using additional buttons.
• Automatic adjustment of the angle of the blades for the blinds, based on the position of the sun calculated based on the location, date and time.
• 'Slat Turning' and 'Canvas Tightening' functions for blinds and curtains, respectively, to correct the position after a movement.

Multifunctional Outputs and Inputs

• 2 multifunctional outputs for heating, air conditioning, supply air, alarm systems, lighting, gutter heating or dimmers.
• 2 multifunctional inputs for motion detectors, smoke detectors, climate control detectors (independent heating/cooling status), closed contacts (for sliding doors) or triggers for automatic resets.

Other Functions

• Automatic resets after manual operations, which return the devices to automatic mode after a set delay (for example, 20 minutes) or at a fixed time (for example, at 3 in the morning).
• Protect the settings menu with an access code to prevent unauthorized changes.
• Adapting the function of the arrow keys to the actual direction of movement (manual direction), for example for shutters that extend from bottom to top.

Technical Specifications

• Glass and plastic case
• Available colors: white/gray, dark grey/black.
• Degree of protection IP20.
• Front display dimensions: 181 mm x 131 mm, mounting depth: 8 mm, plenum box dimensions: 172 mm x 122 mm x 81 mm.
• Total weight: about 1.25 kg.
• Ambient temperature: +5°C... +40°C.
• Non-condensing ambient humidity (RH): 0... 95%.
• Storage temperature: -25°C... +70°C.
• Overvoltage category: III.
• Protection class: II.
• Degree of pollution: 2.
• Radio frequency channels: 868.2 MHz.
