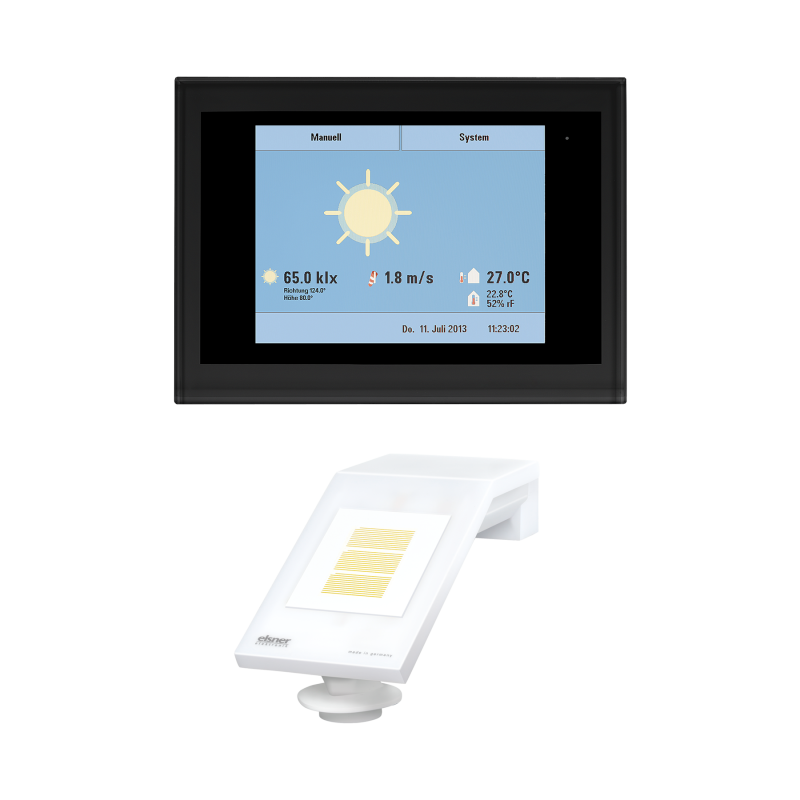

ELSNER 60188 WS1 Style-3- black Building control system for 3 drives 230 V

<p/the ELSNER 60188 product, called WS1 Style-3, is a control system for building automation, designed to manage various shading, ventilation, heating, air conditioning and lighting functions.

Key Features

This system is equipped with a glass pane with integrated 5.7-inch touch screen, characterized by an extremely flat design thanks to the magnetic mount.

Display and Interface

In sleep mode, the screen can display current weather data or be turned off or dimmed to save energy and not disturb the room environment. The display language is adjustable (English, German, French, Italian).

In addition, the display supports the function of framing images via SD card.

Output and Controls

The system has 0-4 outputs per drives (depending on the model), usable for 230 V or potentially free drives, suitable for curtains, blinds, windows and sliding doors. It is possible to connect multiple drives in a group (group control with IMSG 230 Motor Control Unit relay).

The individual motors can be operated manually using additional buttons.

Special Features

The system allows the automatic adjustment of the angle of the blinds according to the position of the sun, calculated on the basis of the location, date and time, to maximize the light in the room without direct exposure to the sun.

'Slat Turning' and 'Canvas Tightening' functions are available for outdoor blinds and curtains, respectively, to adjust the correct position after a movement.

Multifunction Input and Output

The system includes 2 multifunction outputs for heating, cooling, supply air, alarm systems, lighting, gutter heating or dimmers.

In addition, there are 2 multifunction inputs for motion detectors, smoke detectors, climate control detectors (independent heating/cooling status), closed contacts (for sliding doors) or triggers for automatic resets.

Sensors and Remote Controls

The system supports 32 wireless channels for WGTH-UP indoor sensors, Elsner Elektronik ventilation unit, RF relay, RF motor control unit and Remo 8 remote control (available separately).

You can connect up to 4 external manual buttons.

The system includes a weather station for collecting data on wind speed, precipitation, temperature and brightness (including a GPS receiver for calculating the position of the sun).

Settings and Security

It is possible to set the limit value for the detection of 'dusk' (for example for privacy lights and blinds).

All drives and connected units can be named individually (for example, “East Blind”).

Menu settings can be protected with an access code against unauthorized changes.

Automatic Reset

After a manual operation, automatic resets return the drives and units to automatic mode. You can set a time delay (for example 20 minutes after the manual operation) or a fixed time point (for example at 3 in the morning). The resets can be activated separately for each drive group.
