ELSNER 60182 WS1 Style-2- White building control system for 2 230 V drives

The ELSNER 60182 control system, also known as WS1 Style-2, is a complete solution for managing shading, ventilation, heating, air conditioning and lighting systems.

Key Features

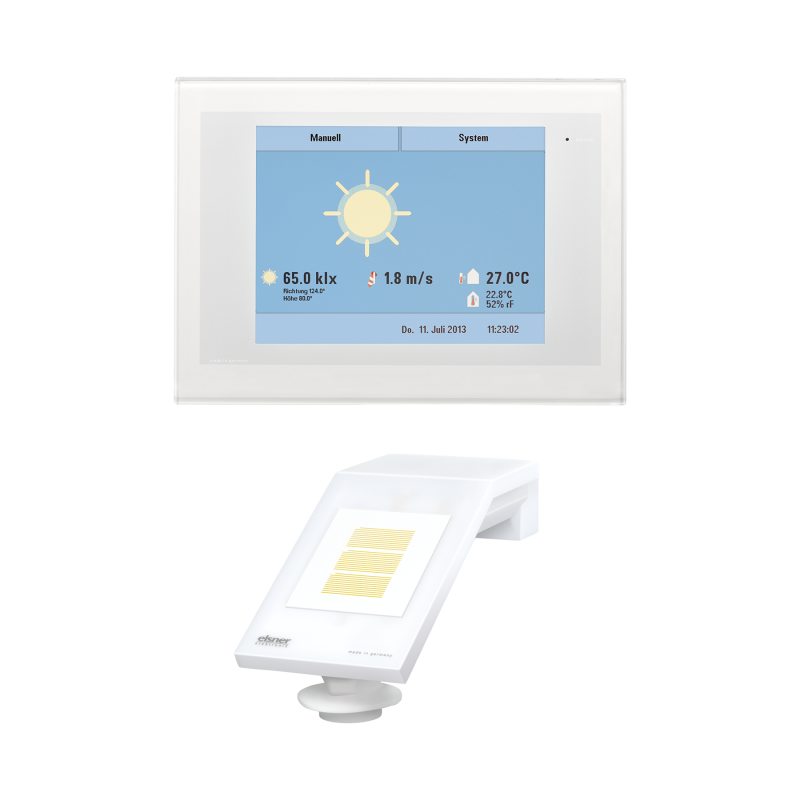

This system is equipped with a glass panel with a 5.7-inch touch screen display, characterized by an extremely flat design thanks to the magnetic mount.

Display and Interface

In sleep mode, the display can display current weather data, be turned off or reduced to a minimum to save energy and not disturb the room environment. The display language is adjustable between English, German, French and Italian.

The display also includes an image frame function, which can be used via an SD card.

Output and Motor Control

The system offers 0 to 4 motor outputs, compatible with 230 V or potentially free motors, suitable for curtains, blinds, windows and sliding doors. You can connect multiple units in a control group using the group's control relay.

The centralization of motor control in a drive group is possible through the IMSG 230 motor control unit. The individual motors can also be operated manually using additional buttons.

Specialized Functions

The system includes the function of automatically adjusting the angle of the blinds, calculated based on the position of the sun, the date and the time, to optimize the entry of light into the room without direct exposure to the sun.

The “Slat Turning” and “Canvas Tightening” functions are also available for blinds and curtains, respectively, to correct the position after a movement, necessary for some shading motors.

Multifunctional Inputs and Outputs

The system has 2 multifunctional outputs for controlling heating, air conditioning, supply air, alarm systems, lighting, gutter heating or dimmers.

In addition, there are 2 multifunctional inputs for motion detectors, smoke detectors, climate control detectors (independent heating/cooling status), closed contacts (for sliding doors) or triggers for automatic resets.

Safety Sensors and Functions

The system includes an indoor radio-controlled sensor for measuring air temperature and humidity, with wireless data transfer to the switchboard. The sensor is powered via cable.

The drives and units can be named individually (for example, “East Persian”). After a manual operation, automatic resets return the drives and units to automatic mode, with the possibility of setting a time delay or a fixed point.

Security and Personalization

The settings menu can be protected with an access code to prevent unauthorized changes.

The function of the arrows can be adapted to the actual direction of movement, for example for shutters that extend from the bottom up.

Technical Specifications

• Casing: glass, plastic
• Colors: white/gray, dark grey/black
• Degree of protection: IP20
• Front display size (W × H) Plenum case mounting depth (W × H × D): 181mm × 131mm 8mm 172mm × 122mm × 81mm
• Total weight: about 1.25 kg
• Ambient temperature: +5... +40°C
• Ambient humidity (RH) (non-condensing): 0..95%
• Storage temperature: -25... +70°C
• Overvoltage category: III
• Protection class: II
• Pollution degree: 2
• Wireless radio frequency channels: 868.2 MHz
