ELSNER 60186 WS1 Style-1 building control system- black for 1 230 V drive

ELSNER 60186 - WS1 Style-1 - Control System for 1 230 V Drive

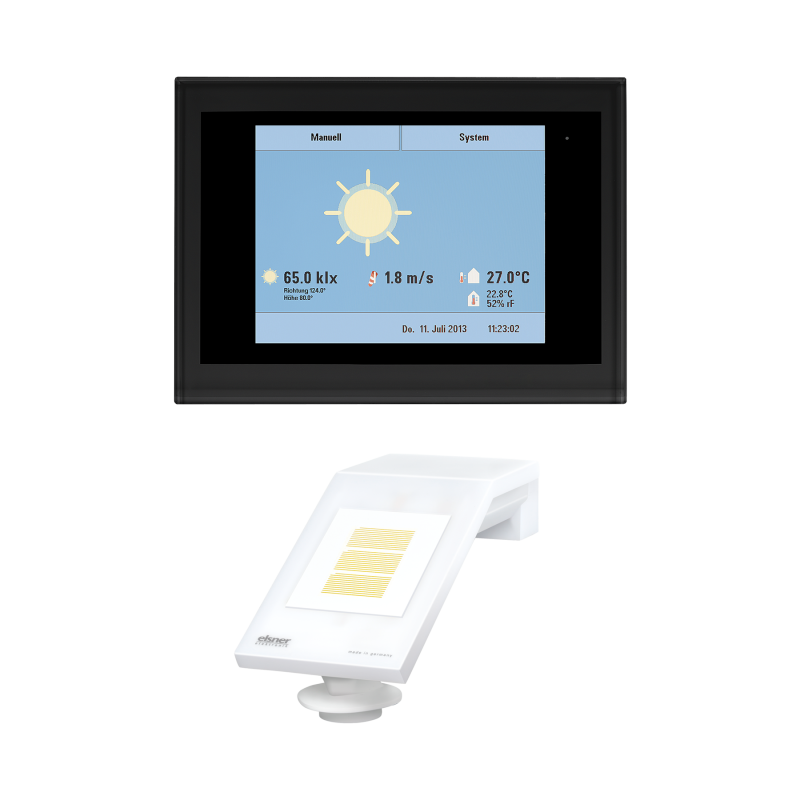

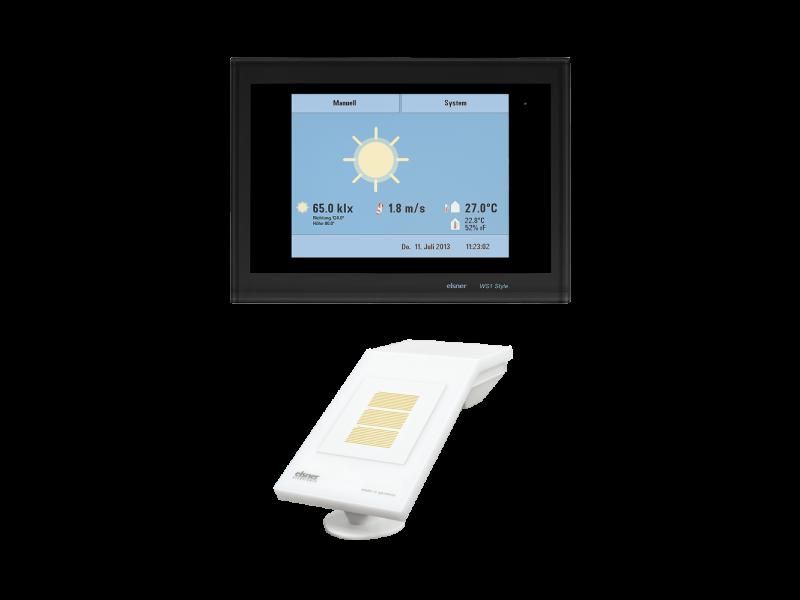

The ELSNER 60186 control system, called WS1 Style-1, is designed to efficiently and intuitively manage various types of drives for curtains, blinds, shutters, windows and sliding doors. This system is characterized by an extremely flat design, thanks to the glass panel with a 5.7-inch touch screen.

Key Features

• 5.7 inch touch screen with glass panel and flat design.
• In sleep mode, the screen can display current weather data, be turned off or reduced to a minimum to save energy and not disturb the room environment.
• Adjustable display language (English, German, French, Italian).
• Picture frame function via SD card.
• 1 output for 230 V or potentially free drives, suitable for curtains, blinds, shutters, windows and sliding doors.
• Centralized control of multiple drives in a drive group using the IMSG 230 motor control unit. The individual drives can also be operated manually using additional buttons.

Advanced Features

• Automatic adjustment of the angle of the blades for the blinds: the blades can be positioned according to the position of the sun to allow the maximum amount of light into the room without exposing it to direct light.
• 'Slat Turning' and 'Canvas Tightening' functions for blinds and curtains, respectively, to correct the position after a movement.
• 2 multifunctional outputs for heating, air conditioning, supply air, alarm systems, lighting, gutter heating or dimmers.
• 2 multifunctional inputs for motion detectors, smoke detectors, climate control detectors (independent heating/cooling status), closed contacts (for sliding doors) or triggers for automatic resets.

Personalization and Security

• All drives and units can be named individually (for example, “East Blind”).
• After a manual operation, automatic resets return the drives and devices to automatic mode. You can set a time delay (for example, 20 minutes after the manual operation) or a fixed time point (for example, at 3 in the morning). The resets can be activated separately for each drive group.
• The settings menu can be protected with an access code to prevent unauthorized changes.
• The function of the arrow keys can be adapted to the actual direction of movement (manual direction), for example for shutters that extend from bottom to top.

Technical Specifications

• Glass and plastic case
• Available colors: white/gray, dark grey/black.
• Degree of protection: IP20.
• Display panel dimensions (W × H): 181 mm × 131 mm. Mounting depth: 8 mm. Dimensions of the mounting box (L × H × D): 172 mm × 122 mm × 81 mm.
• Total weight: about 1.25 kg.
• Ambient temperature: +5... +40°C.
• Non-condensing ambient humidity (RH): 0...95%.
• Storage temperature: -25... +70°C.
• Overvoltage category: III.
• Protection class: II.
• Degree of pollution: 2.
• Radio frequency: 868.2 MHz.
