ELSNER 60185 WS1 Style-0- Black Building Control System- Radio- 230 V

The ELSNER 60185 WS1 Style-0 control system is a complete solution for managing shading, ventilation, heating, air conditioning and lighting. This system is designed to provide centralized and customizable management of various household and commercial devices.

Key Features

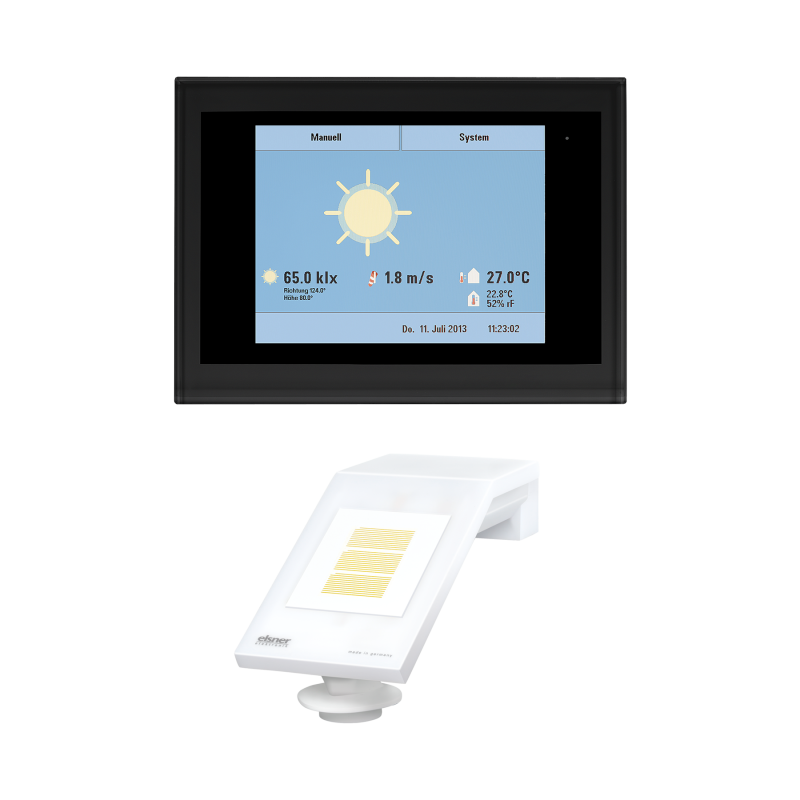

The WS1 Style-0 has an extremely flat design thanks to the magnetic mount and includes a glass panel with a 5.7-inch touch screen display. The display can display current weather data, be turned off or reduced to a minimum in sleep mode, optimizing energy consumption and maintaining the room environment.

Languages and Functionality

The display supports several languages, including English, German, French and Italian. In addition, it offers an SD card picture frame function.

Device Control

The system has 0-4 outputs for 230 V or potentially free drives, suitable for curtains, blinds, windows and sliding doors. It is possible to connect multiple drives into a group and control them centrally using the IMSG 230 motor control unit.

• Automatic adjustment of the angle of the blades for the blinds, based on the position of the sun calculated based on the location, date and time.
• 'Slat Turning' and 'Canvas Tightening' functions for blinds and curtains, respectively, to correct the position after a movement.

Multifunctional Outputs and Inputs

The system includes 2 multifunctional outputs for controlling heating, air conditioning, supply air, alarm systems, lighting, gutter heating or dimmers. In addition, there are 2 multifunctional inputs for motion detectors, smoke detectors, climate control detectors, closed contacts for sliding doors or pulses for automatic resets.

Sensors and Detectors

The system supports 32 wireless channels for WGTH-UP indoor sensors, Elsner Elektronik ventilation unit, RF relay, RF motor control unit and the Remo 8 remote control. Motion and smoke detectors can activate specific actions, such as closing windows or removing curtains through escape routes and starting ventilation to extract smoke.

Other Features

All connected devices and drives can be operated manually with the Remo 8 remote control. The system includes a weather station to detect wind speed, precipitation, temperature and brightness, with a GPS receiver to calculate the position of the sun. You can set the 'twilight' detection limit for privacy lights and blinds.

• All devices and drives can be named individually (for example, “East Blind”).
• Automatic resets that return the devices to automatic mode after a manual operation, with the possibility of setting a delay or a fixed time.
• Protect the settings menu with an access code to prevent unauthorized changes.
• Adaptation of the function of the arrow keys to the real direction of movement (manual direction), for example for shutters that extend from bottom to top.

Technical Specifications

The system has a glass and plastic design, available in white/gray and grey/black colors. The IP20 protection guarantees resistance to weather agents. The dimensions of the front display are 270 mm x 185 mm with a mounting depth of 9 mm. The total weight is about 2.1 kg.

• Ambient temperature: +5°C... +40°C
• Ambient humidity (non-condensing): 0%... 95%
• Storage temperature: -25°C... +70°C
• Overvoltage category: III
• Protection class: II
• Pollution degree: 2
• Radio frequency: 868.0... 868.6 MHz
