ELSNER 60142 WS1 Color-4-aluminium building control system for 4 230 V drives

MT Code: ELS_60142
Manufacturer Code: 60142
Brand: ELSNER

ELSNER 60142 - WS1 Color Product Description

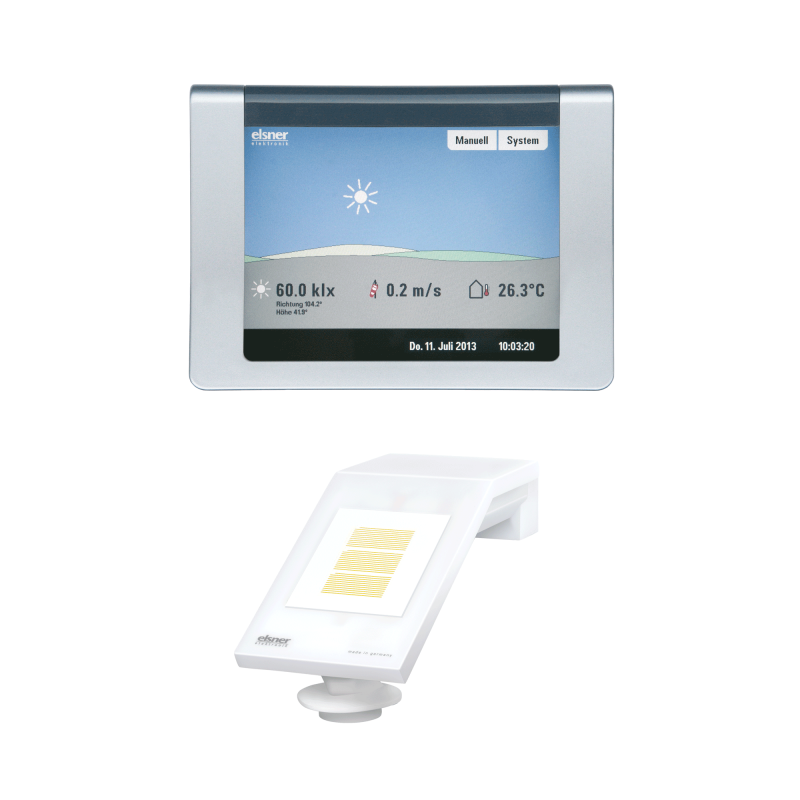

Elsner Elektronik's WS1 Color control system is a versatile central control and operations unit designed to manage various aspects of home and commercial automation. This device features a 5.7-inch animated color graphic display with touch function, which ensures simple and intuitive operation without the need for additional keys. The display is easily readable even in daylight conditions and has a 'floating' style housing design.

Key Features

5.7 inch color display with touch function.
Glass and plastic housing with glossy white/light gray (RAL 9003/RAL 7035) or aluminum/graphite (RAL 9006/RAL 7024) finishes.
Dimensions of the central unit: 164 mm x 121 mm x 29 mm; mounting box: 152 mm x 95 mm x 62 mm.
Total weight: about 1 kg.
Operating ambient temperature: +5°C to +40°C.
Operating ambient humidity (non-condensing): 0% - 95%.
Storage temperature: -25°C to +70°C.
Overvoltage category: III.
Protection class: II.
Degree of protection: IP20.

Control Functionality

The WS1 Color is equipped with 1, 2, 3 or 4 drive outputs (depending on the model) for 230 V or potentially free motors, usable for curtains, blinds, windows and sliding doors. It is possible to connect multiple drives in a group through a group control relay.

Additional Sensors and Features

Integrated internal sensor for measuring temperature and humidity.
Humidity detection: 5% - 95%.
Temperature measurement: -5°C to +60°C.
Integrated weather station.
Support for motion and smoke detectors for added security.
Heating and air conditioning control.
Adjustable display language (English, German, French, Italian).
Sleep mode: the display can display current weather data, be turned off or dimmed to save energy and not disturb the room environment.
