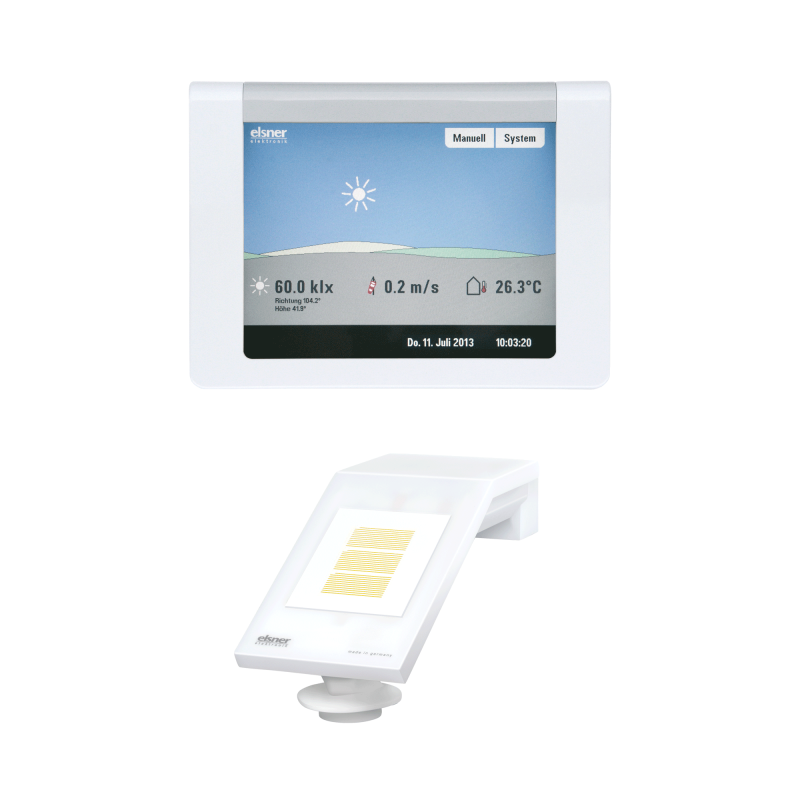

ELSNER 60136 WS1 Color-2-white building control system for 2 230 V drives

The ELSNER 60136 building control system, known as WS1 Color-2, is a versatile central control unit equipped with numerous functionalities for managing shading, ventilation, heating and air conditioning systems.

Display and User Interface

The WS1 Color-2 is equipped with a 5.7-inch animated color graphic display with touch function, which allows easy and intuitive operation without the need for additional keys. The display is readable even in bright daylight and features a floating style housing design.

Display functionality

In sleep mode, the display can display current weather data or be turned off or dimmed. The dimming of the display saves energy and does not interfere with the room environment.

Supported Languages

The display language is adjustable between English, German, French and Italian.

Engine Outputs

The system has 1, 2, 3 or 4 outputs for 230 V motors, depending on the model, suitable for curtains, blinds, windows and sliding doors. It is possible to connect multiple units in a group through a group control relay.

Maximum Supported Loads

• Maximum load on a single drive output: 500 VA (2.17 A)
• Sum of the loads of all drive outputs and connected loads: 1000 VA (4.3 A)

Multifunctional Entrances

There are 2 multifunctional inputs for motion detectors, smoke detectors, climate control detectors (independent heating/cooling status), closed contacts (for sliding doors) or triggers for automatic resets.

Security Features

• A motion detector alarm closes the windows.
• A smoke detector alarm retracts the tents (escape paths) and starts ventilation (smoke extraction).

Wireless channels

The system supports 32 wireless channels for WGTH-UP indoor sensors, Elsner Elektronik ventilation unit, RF relay, RF motor control unit and the Remo 8 remote control.

External Links

Connections are available for 4 external wall buttons. All connected devices and units can be operated manually with the Remo 8 remote control (available separately).

Integrated sensors

The system includes an integrated indoor sensor with humidity (5-95%) and temperature (-5°C to +60°C) measurement.

Other Features

• Connections to screw terminals: one wire per terminal, solid or thin-wire conductor cross-section 1.0-2.5 mm², stripping length 7 mm.
• Integration with weather stations.
