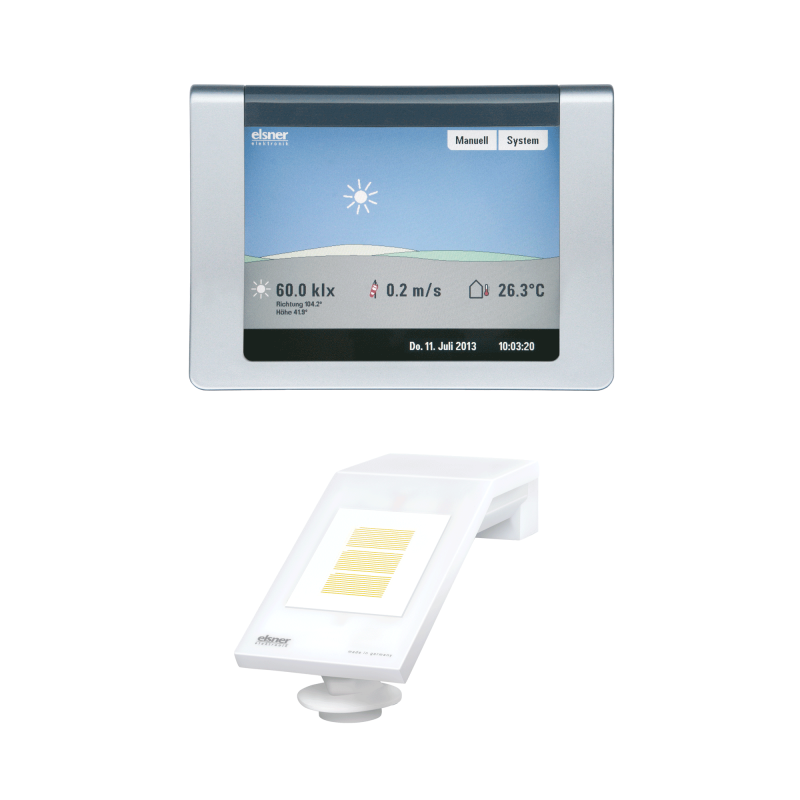

ELSNER 60139 WS1 Color-1- Aluminium building control system for 1 230 V drive

The ELSNER 60139 building control system, called WS1 Color-1, is a versatile and sophisticated device designed to manage various aspects of home and building automation.

Display and User Interface

The WS1 Color-1 is equipped with a 5.7-inch animated color graphic display with touch function, which allows easy and intuitive operation without the need for additional keys. The display is easily readable even in daylight conditions and has a 'floating' style housing design. In sleep mode, the display can display current weather data or be turned off or dimmed to save energy and not disturb the room environment.

Language and Personalization

The display language is adjustable between English, German, French and Italian, allowing customization according to the user's needs.

Outputs and Controls

The system has 1 output for 230 V motors, suitable for controlling curtains, blinds, windows and sliding doors. It is possible to connect multiple outputs in a group through a group control relay.

Security and Automation Features

• Built-in motion and smoke detectors provide additional security features. A motion detector alarm closes windows, while a smoke detector alarm retracts curtains (escape paths) and starts ventilation (smoke extraction).
• 2 multifunctional inputs for motion detectors, smoke detectors, climate control detectors (independent heating/cooling state), closed contacts (for sliding doors) or triggers for automatic resets.

Connectivity and Remote Control

The system supports 32 wireless channels for WGTH-UP indoor sensors, Elsner Elektronik ventilation unit, RF relay, RF motor control unit and the Remo 8 remote control (available separately). In addition, there are connections for 4 external wall buttons.

Technical characteristics

• Maximum motor load on a single output: 500 VA (2.17 A)
• Sum of the loads of all outputs and loads connected to LF: 1000 VA (4.3 A)
• Screw connection terminals: one wire per terminal
• Fine-layered solid conductor cross-section: 1.0... 2.5 mm²
• Stripping length: 7 mm
• Humidity detection: 5..95%
• Temperature measurement: -5... +60°C

The WS1 Color-1 represents a complete and integrated solution for the management of home automation systems and buildings, offering a combination of control, security and comfort functions.
