ELSNER 60146 - WS1 Color: Building Control System

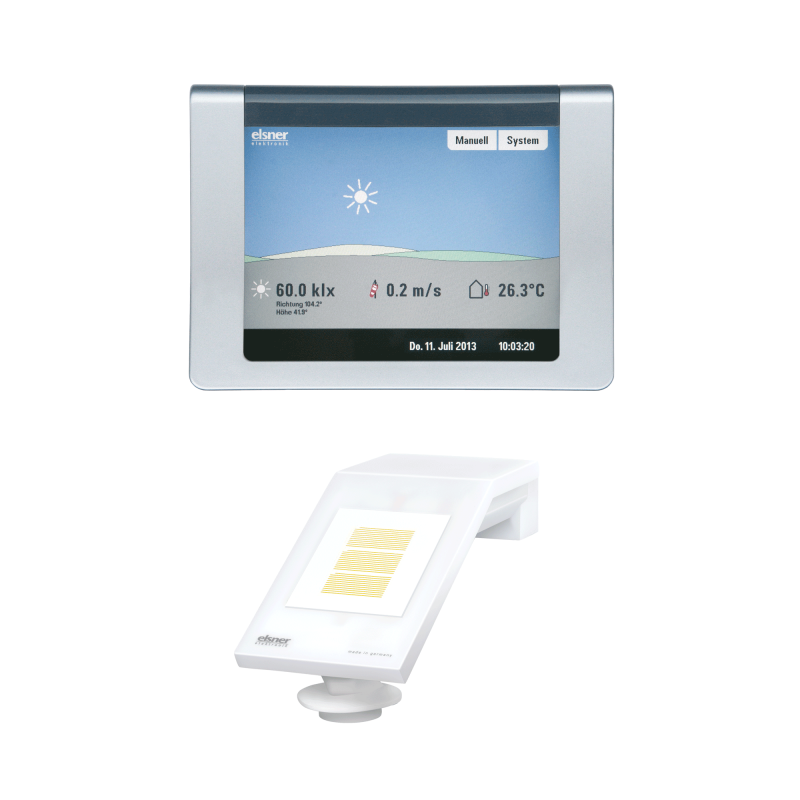

The ELSNER 60146 control system, known as WS1 Color, is a versatile and powerful central control unit designed to manage various aspects of home and building automation. This system is characterized by a 5.7-inch animated color graphic display with touch function, which guarantees intuitive and easy to use operation, even in daylight conditions.

Key Features

• 5.7-inch animated color display with touch function, facilitating operation without the use of additional keys.
• In sleep mode, the display can display current weather data, be turned off or reduced to a minimum, saving energy and not disturbing the room environment.
• Adjustable display language (English, German, French, Italian).
• 1, 2, 3 or 4 outputs for 230 V motors or free potentials, suitable for curtains, shutters, windows and sliding doors. Option for connecting multiple units in a group (group control relay).
• 2 multifunctional inputs for motion detectors, smoke detectors, climate control sensors (independent heating/cooling status), closed contacts (for sliding doors) or triggers for automatic resets.

Security and Automation

• A motion detector alarm closes the windows, while a smoke alarm retracts the curtains (escape paths) and starts ventilation (smoke extraction).
• 32 wireless channels for WGTH-UP indoor sensors, Elsner Elektronik ventilation unit, RF relay, RF motor control unit and Remo 8 remote control.
• Connections for 4 external wall buttons.

Technical Features

• Maximum motor load on a single drive output: 500VA (2.17 A).
• Sum of the loads of all drive outputs and of the loads connected to the LF: 1000VA (4.3 A).
• Screw terminals for connections: one wire per terminal, solid or thin-wire conductor cross-section from 1.0 to 2.5 mm², stripping length 7 mm.
• Humidity detection: 5..95%.
• Temperature measurement: -5... +60°C.

Integration and Control

• All devices and operated units can be operated manually with the Remo 8 remote control (available separately).
• Central control system with integrated indoor sensor.
• Option for heating and air conditioning control.
