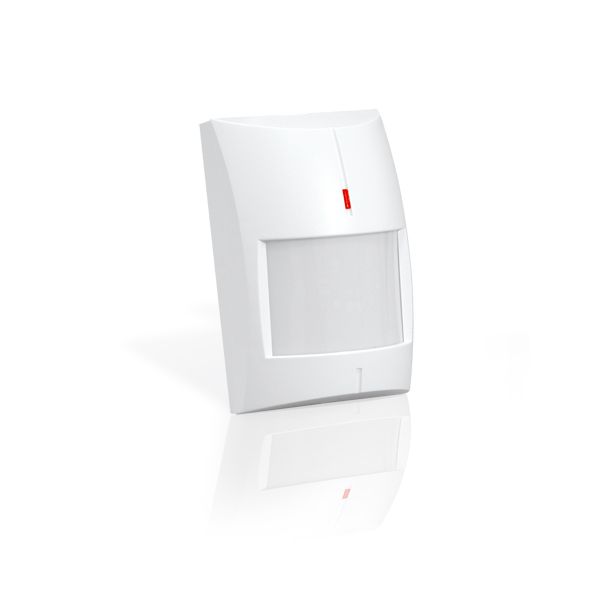

SATEL MPD-300 Wireless PIR motion detector for PERFECTA

MT Code: SAT_MPD-300
Manufacturer Code: MPD-300
Brand: SATEL

Description

Wireless PIR motion detector for PERFECTA 16-WRL-32-WRL-T 32-WRL, VERSA-MCU, MTX-300, MICRA (BRACKET A included)

Motion detector, whose function is to detect an intruder moving within the protected area of the system. Thanks to its pet immunity, the MPD-300 can provide protection even if small animals, such as dogs or cats, move into its coverage range at the time of supervision. A lithium battery used to power the device ensures many years of operation without having to be replaced, so the system is as easy to use as traditional wired solutions.

Characteristics:

compatible with the MICRA alarm module, the PERFECTA 16-WRL, PERFECTA 32-WRL, PERFECTA 32-WRL LTE, PERFECTA-IP 32-WRL, PERFECTA-T 32-WRL and PERFECTA 64 M control panels (equipped with the PERFECTA-RF module ) as well as VERSA-MCU and MTX-300 wireless system controllers,
Radio signals from a detector can be retransmitted by the MRU-300
digital detection algorithm with temperature compensation for high immunity to false alarms and parameter repeatability,
possibility of changing the sensitivity to adapt the optimal parameters of the detector to the protected space,
optional operating mode with pet immunity up to 15 kg, which allows the protection of areas where pets are present,
energy management system to allow many years of operation without having to replace the CR123A lithium battery,
Violation signaling LED in test mode, for easy start-up and subsequent maintenance of the system,
tamper detection, e.g. case opening, tearing from mounting surface

Application:

Protection of small buildings, such as kiosks, summer houses, boutiques, detached garages and workshops

Delivery set:

detector, adjustable handle, rear tamper unit, CR123A lithium battery, mounting hardware, user manual

Data Sheet
