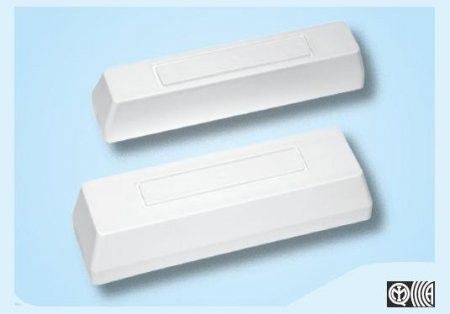

VIMO KCHP02 White ABS high security contact Double magnetic balance

MT Code: VMO_KCHP02
Manufacturer Code: KCHP02
Brand: VIMO

IMQ approved KCHP02 is suitable for surface installation on all internal windows. With a double balance, it is protected from the application of external magnetic fields. Anti-opening tampers and connecting clamps.

White color

GENERAL CHARACTERISTICS

Material-Color Plastic-White
7-21 mm (optimal 10-18 mm) Operating distance on iron 0-14 mm (optimal 7-12 mm)
Dimensions 140x29x21 reed- mm 140x21x21 magnet
Clamp connection (4 poles) Certificate EN50131-2-6 IMQ grade.3 CL.II
temperature -10 degrees C - +40 degrees C REED CHARACTERISTICS Max switchable voltage 60Vcc-
42-2Vcapicco

Maximum switchable current

250mACC
Switchable max power 3VA
Initial contact resistance 0-1ohm
Insulation resistance 10e12 ohmTBF n degrees of operation 10e8 SPECIFIC CHARACTERISTICS Plastic enclosure Indoor installation High securityMagnetic
