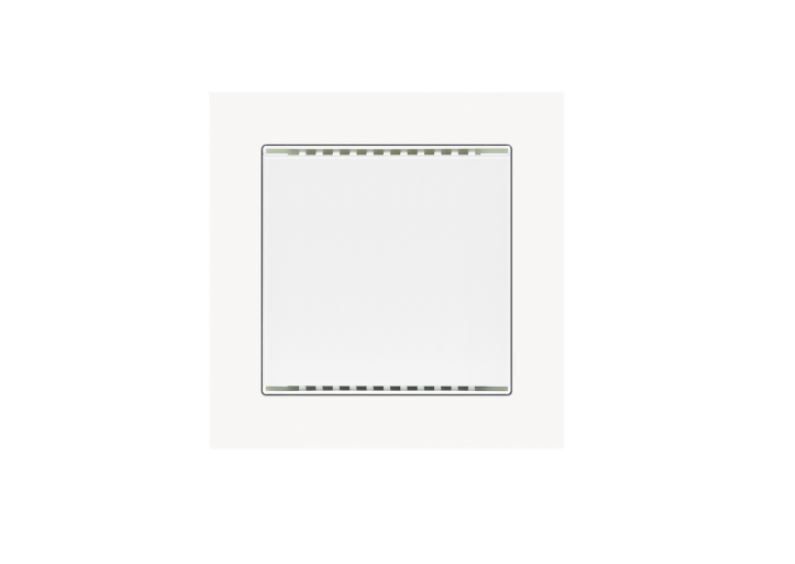

ELSNER 20557 WGTH gl- pure white RAL 9010 Indoor Sensor (Temperature

<p_The Elsner Elektronik WGTH gl indoor sensor is a specialized device for measuring temperature and relative humidity in the indoor environment. This sensor transfers data to the control system via radio, allowing multiple units to be connected to a single control system.

Key Features

• Real glass and plastic body
• Color: glossy white (similar to RAL 9010)
• Mounting on a device socket according to DIN EN IEC 60670-1
• Degree of protection: IP 20
• Dimensions: body approx. 55 x 55 mm (L x H), mounting depth approx. 8 mm, base approx. 71 x 71 mm (L x H)
• Total weight: approx. 50 g

Environmental Conditions

• Operating temperature: -5°C... +45°C
• Storage temperature: -55°C... +90°C
• Maximum relative humidity: 95% RH, avoid condensation

Food and Consumption

• Supply voltage: 11... 28 V DC
• Maximum current: 35 mA

Wireless operation

• Wireless Frequency: 868.2 MHz
• Protocol: Proprietary protocol (Elsner RF)

Measurements

• Temperature measurement range: -5°C... +60°C
• Humidity measurement range: 0% RH... 95% RH

compatibility

• Compatible with: WS1 Color/Style, (KNX) WS1000 Color/Style/Connect, Solexa II (temperature assessment only)

Required Components

• Socket Ø 60 mm, 42 mm deep (not included in the delivery)
