WEINZIERL 5231 KNX IO 411 (4Ii) is a compact binary input with 4 channels
- MT Code
- WNZ_5231
- Manufacturer Code
- 5231
- Brand
- WEINZIERL
![WEINZIERL WEINZIERL](https://images.ctfassets.net/g6z2so3d6429/2XS8rmyFM42QceYlq6IhTZ/81bc174e5fab29235412cf641fc86542/weinzierl-distributore-italia.png?w=260&h=260&fm=webp&q=80)
![extra sconto di benvenuto](https://images.ctfassets.net/g6z2so3d6429/1nCII0xdbZgmEJPENaWasr/e37d4000d07fb07137d1d55247893c74/Benvenuto2024_.jpg?w=540&fm=webp&q=80)

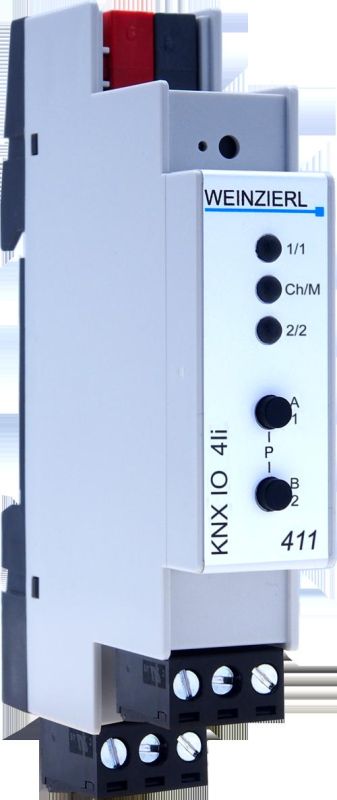

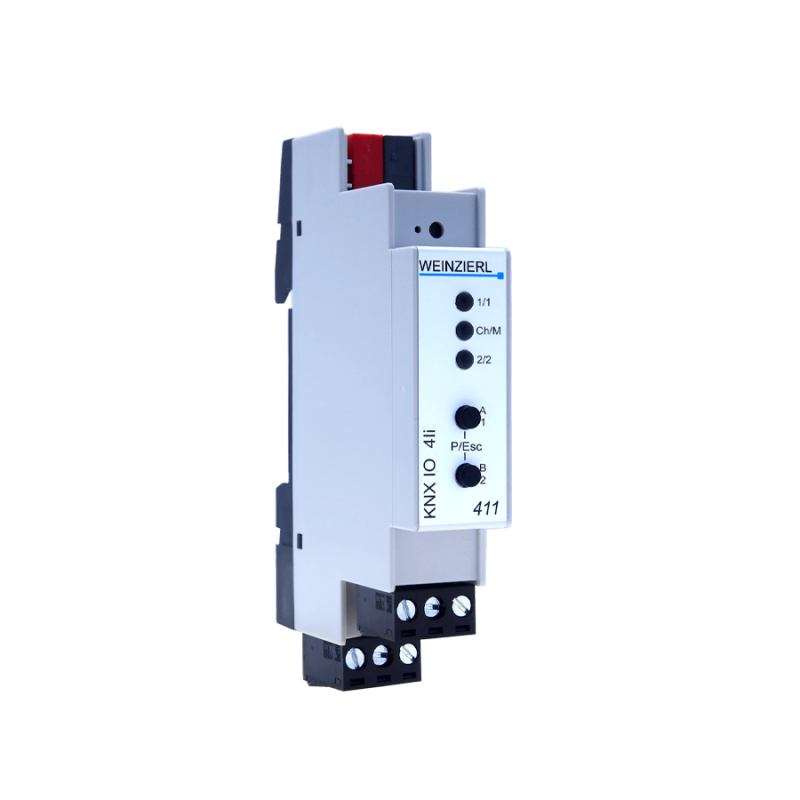

The KNX IO 411 (4Ii) is a compact binary input with 4 channels to control lights, shutter etc. with conventional switches or contacts. Inputs are designed for dry contacts. Using as impulse counter is possible as well. It can be used to connect energy meters with S0 output or anemometers.
Two push buttons and three LEDs allow a local operation and a visualization of the device state. In addition to the input channels the device includes 16 independent functions for logic or timer control.
TECHNICAL DATA:
Mechanical data
Housing: plastic
DIN rail mounted device, width: 1 modules (18 mm)
Weigth: approx 50 g
User Interface
two keys for on device settings
three multi color LEDs
KNX programming LED and KNX programming key
KNX
Device Model System B
Compatible with ETS 4.2 (or higher)
Connectors
Connector for KNX Bus (red / black)
Pluggable screw connector (3 poles) for binary input channel 1 and 2
Pluggable screw connector (3 poles) for binary input channel 3 and 4
Input channels (Binary in)
Contact voltage: SELV
wire length 20 m
Codice a barre | 4260262772312 |
---|---|
Codice Produttore | 5231 |
Brand | WEINZIERL |
