DIVUS MSK10W wall mounting kit for recessed installation in plasterboard walls

The DIVUS MSK10W wall mounting kit is designed for wall mounting DIVUS SUPERIO 10 touch panels. This kit ensures quick and easy installation, suitable for plaster walls and wooden structures.

Mechanical Characteristics

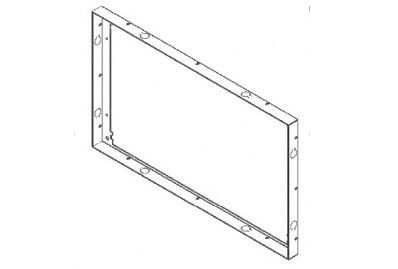

The MSK10W kit is made of a steel plate equipped with a cover for a clean and tidy installation. The plate has a pattern to facilitate installation.

• Dimensions: 328 x 196 x 90 mm
• Cut in the wall: 315 x 182 mm (corresponding to the 10.1” panel)
• Weight: about 2 kg
• Requires 3 cm of additional space on each side for mounting arms

Cable Access and Connections

The kit includes access to the cables from the top, bottom, left and right, located on the back of the plate. It is important to ensure professional grounding for both the DIVUS SUPERIO panel and the MSK10W kit.

Environmental Conditions

The kit is designed to operate under specific environmental conditions:

• Temperature: from 0°C to 30°C
• Relative humidity: 5% to 80% at 25°C (without condensation)
• Vibration and shock resistance: 15G/50G
• EMC compatibility: EN 55011, 55022, 500081

Accessible Front Links

After wall mounting, only those connections described as “front” will be accessible. This includes USB ports and other connections essential for panel operation.
