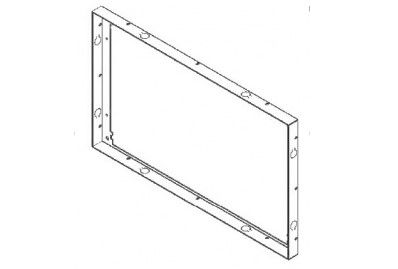

DIVUS MS19W wall mounting kit for recessed installation in plasterboard walls

DIVUS MS19W Product Description

<p The DIVUS MS19W is a capacitive touch panel designed for wall mounting, ideal for professional applications that require an intuitive and robust user interface.

Technical characteristics

<p The MS19W panel features an 18.5-inch TFT display with LED backlighting, offering a brightness of 300 cd/m² and a contrast ratio of 1000:1. The display resolution is 1366x768 pixels, ensuring a clear and detailed view.

Design and Construction

<p The panel structure is ultra compact and embedding, with a smooth, homogeneous glass surface and an anodized aluminum side edge. The weight of the panel is about 9 kg.

fitment

<p Mounting the MS19W panel is quick and easy thanks to the DIVUS wall mounting system, which requires an additional 3 cm space on each side for mounting supports. The dimensions of the cut in the wall are 596 x 341 x 90 mm.

Connectivity and Interfaces

<p The panel has several interfaces, including 2 front-accessible USB 2.0 ports, 2 external USB 3.0 ports, a DVI-I port for video output, an RS232 port and an RS422/485 port. In addition, it comes with a Gigabit Ethernet network interface and options for WiFi and Bluetooth.

Functionality

<p The MS19W panel uses a multilingual Microsoft Windows Embedded Standard 7 (WES7P) operating system and supports applications without rotating parts, ensuring quiet operation. It also includes a speaker and an echo-canceling microphone for two-way communication.

Areas of Use

<p The panel is designed to operate in a temperature range from 0°C to 30°C and a relative humidity of 5% to 80% at 25°C, without condensation. It complies with EMC EN 55011, 55022, 500081 standards and has a resistance to vibrations and shocks of 15G/50G.

• 18.5-inch TFT display with LED backlight
• Brightness: 300 cd/m², Contrast Ratio: 1000:1
• Resolution: 1366x768 pixels
• Homogeneous smooth glass surface with anodized aluminum side edge
• Weight: about 9 kg
• Dimensions of the cut in the wall: 596 x 341 x 90 mm
• Interfaces: USB 2.0 and 3.0, DVI-I, RS232, RS422/485, Gigabit Ethernet
• Operating system: Microsoft Windows Embedded Standard 7 (WES7P) multilingual
• Quiet operation without rotating parts
• Speaker and microphone with echo cancellation
• Vibration and shock resistance: 15G/50G
• EMC standards: EN 55011, 55022, 500081
