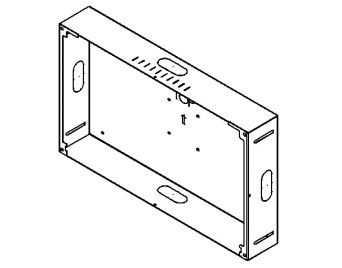

DIVUS MS19T wall box for plaster walls and wooden frame

The DIVUS MS19T touch panel is an ultra compact embedded system designed for wall installation, ideal for professional applications that require an intuitive and reliable user interface.

Technical characteristics

This device features an 18.5-inch (47.0 cm) TFT LED backlight display with a brightness of 300 cd/m² and a contrast of 1000:1. The display resolution is 1366x768 pixels.

Operating System and Processor

The MS19T uses the Android 9 operating system, supported by a 1.8 GHz Cortex-A72 dual-core processor and 1.4 GHz quad-core Cortex-A53 processor. The available RAM memory is 2 GB, with the option of expanding to 4 GB.

Interfaces and Connectivity

• Lan/Ethernet on RJ45 connector with PoE+ support (IEEE Std 802.3at™)
• 802.11 a/b/g/n WiFi connection option
• Bluetooth 4.0 LE connection option
• 2 USB 2.0 ports
• 1 mini USB OTG port
• RS-232/422/485 serial interface (option)
• GPIO - 4 inputs and 4 outputs for relays with a maximum of 100 mA/5VDC

Sensors and Multimedia Features

The device includes a proximity sensor, an orientation sensor and a light sensor. In addition, it is equipped with an external 2 Watt RMS speaker and an external microphone with an echo cancellation function for two-way communication.

Power and Energy Consumption

The MS19T is compatible with PoE+ power and also supports a 12-32 V DC power supply. The maximum power consumption without peripherals is 30 W.

Assembly and Design

The touch panel is designed for quick and easy mounting with the DIVUS wall mounting system. The structure is made of steel and anodized aluminum, ensuring stability and compactness ideal for installation in various environments.
