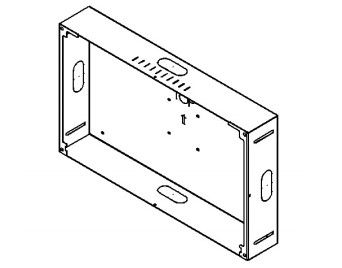

DIVUS MS10T wall box for plaster walls and wooden frame

The DIVUS MS10T is a wall mounting box designed for the integration of DIVUS SUPERIO touch panels, particularly suitable for installations in plaster walls and wooden structures.

Technical characteristics

This mounting box has dimensions of 315 x 182 x 80 mm, making it compatible with 10.1 inch touch panels.

Design and Construction

The structure of the MS10T is made of sheet steel with a cover for a clean and tidy installation. The design is compact, stable and flat, making it easy to integrate into the wall without requiring special masonry work.

Access to Cables

The box has cable accesses positioned at the top, bottom, left and right, ensuring easy management of connections once installed.

Assembly Requirements

For proper installation, it is necessary to ensure that there is an additional 3 cm space on each side for the mounting arms. In addition, the box requires a rear cavity for ventilation.

Grounding

It is essential to perform professional grounding of both the MS10T box and the DIVUS SUPERIO touch panel to ensure the electrical safety of the installation.

Compatibility with Touch Panels

The MS10T is specifically designed for DIVUS SUPERIO 10.1 inch touch panels, such as the DSA10, and supports the functionality of these devices, including capacitive screens with 3 mm glass and the dual touch function.

Weight and Dimensions

• Dimensions: 315 x 182 x 80 mm
• Weight: about 2 kg

This mounting box offers a practical and efficient solution for integrating DIVUS SUPERIO touch panels into various environments, ensuring a quick and trouble-free installation.
