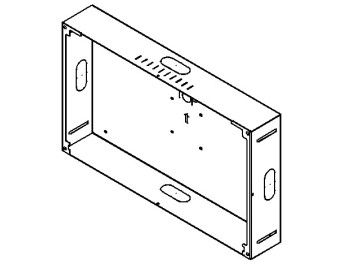

DIVUS MS19 wall box for concrete and brick walls.

The DIVUS MS19 is a touch panel intended for integration into domestic and commercial automation systems, offering a complete and versatile solution for the visualization, communication and control of building systems.

Technical characteristics

The DIVUS MS19 is available in different display sizes: 25.7 cm (10"), 38.6 cm (15") and 47 cm (19"). This allows the device to be adapted to the specific needs of the user and the environment in which it will be installed.

Display and User Interface

The displays are characterized by a homogeneous and smooth glass surface with aluminum edges, giving an elegant and modern appearance. Projected capacitive touch screen technology allows smooth and precise interaction with the device.

• Brightness: 250 cd/m² (10"), 300 cd/m² (15" and 19")
• Contrast: 400:1 (10"), 500:1 (15"), 1000:1 (19")
• Resolution: WSVGA (1024*600) for the 10" model, HD (1366*768) for the 15" and 19" models

Performance and Memory

The system is equipped with a low-power fanless processor, consisting of a 1.8GHz dual-core Cortex-A72 and a 1.4GHz quad-core Cortex-A53. The RAM memory is 2 GB, with the option of expanding to 4 GB.

• Storage memory: 16 GB eMMC
• Expansion slot: microSD

Connectivity and Interfaces

The DIVUS MS19 offers a variety of connectivity options, including:

• LAN/Ethernet over RJ45 with PoE+ support (IEEE Std 802.3at™)
• WiFi 802.11 a/b/g/n (optional)
• Bluetooth 4.0 LE (optional)
• 2 x USB 2.0
• 1 x mini USB OTG
• 1 x RS-232/422/485 (optional)
• GPIO - 4 x Input/4 x Output for 4 relays with max. 100 mA/5VDC

Multimedia Features

The device includes built-in multimedia features, such as:

• Loudspeaker 2 Watt RMS (external)
• Microphone (external) with echo cancellation for two-way communication

Integration with Other Systems

The DIVUS MS19 can be integrated with the DIVUS VIDEOPHONE system, transforming it into an internal intercom station, allowing communication between different touch panel stations. In addition, the DIVUS DASHBOARD dashboard offers a simple and customizable interface to manage several applications at the same time.

Design and Materials

The design of the DIVUS MS19 combines high-quality materials such as glass and aluminum, giving it an elegant and durable appearance. The display surface is treated with an antibacterial coating (available for the DSK15-B model), ensuring long life and consistent effectiveness without the use of chemicals.
