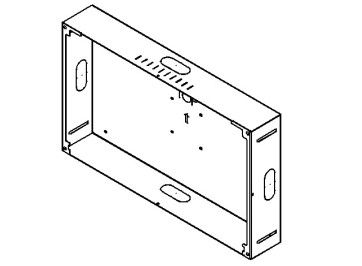

DIVUS MS10 wall box for concrete and brick walls.

MT Code: DVS_MS10
Manufacturer Code: MS10
Brand: DIVUS

The DIVUS MS10 is a touch panel system designed for wall mounting, ideal for professional applications that require reliability and high performance.

Technical characteristics

The MS10 panel is equipped with a 10.1 inch capacitive screen with LED backlight technology, offering a brightness of 250 cd/m² and a contrast ratio of 400:1. The screen resolution is 1024x600 pixels in WSVGA format.

Processor and Memory

The system is equipped with a 1.86 GHz Intel® Atom Dual Core N2800 processor, integrated with the Intel® NM10 chipset and the Intel® GMA 3650 graphics card. The RAM memory is 2 GB DDR2 SDRAM, with an expansion option.

Interfaces and Connectivity

4 USB 2.0 ports (2 front and 2 external)
2 USB 3.0 ports (external)
1 RS232 port and 1 RS422/485 port (on pin header)
DVI-I video port for video output (external)
10/100/1000 Mbps LAN/Ethernet connectivity

Multimedia and Sensors

The panel includes a speaker and an echo-canceling microphone for two-way communication. In addition, it is equipped with proximity and brightness sensors for automatic display orientation.

Environmental Conditions

The system is designed to operate under variable environmental conditions, with a resistance to vibrations and shocks of 15G/50G and an operating temperature between 0°C and 30°C. The relative humidity can vary from 5% to 80% at 25°C without condensation.

Assembly and Dimensions

The MS10 is available in several mounting options, including steel wall mounting boxes and mortarless construction kits. The dimensions of the mounting box are 315 x 182 x 80 mm, with a weight of approximately 4 kg.
