Universal wireless detector - magnetic - vibration - temperature - flooding - reorientation

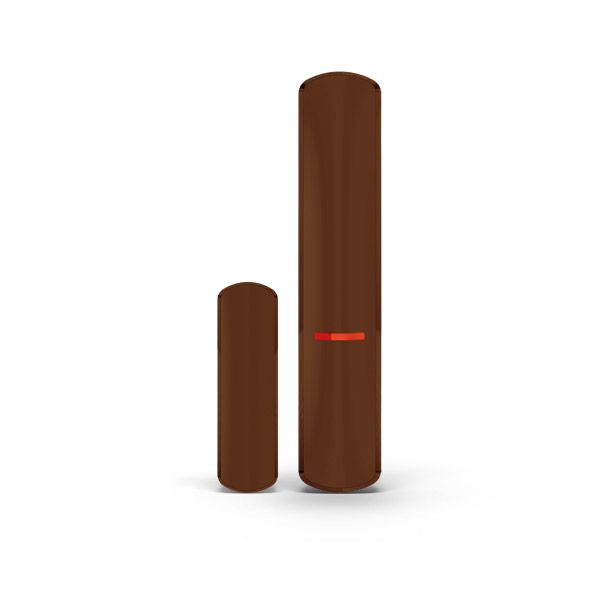

SATEL AXD-200 BR Universal wireless detector - magnetic - vibration - temperature - flooding - reorientation

MT Code: SAT_AXD-200 BR
Manufacturer Code: AXD-200 BR
Brand: SATEL

Universal wireless detector - magnetic - vibration - temperature - flooding - reorientation (brown - compatible with ABAX system)

AXD-200 is the innovative multifunction detector of the ABAX 2 bidirectional wireless system. It meets the requirements of the EN 50131 standard for Grade 2.

The device can operate in one of 9 modes:

1-channel magnetic contact (doors and windows)

2-channel magnetic contact (double door and window and shutter)

Magnetic contact with roller shutter input (window and roller shutter)

Impact detector + magnetic contact (doors, glass windows, windows)

Three-axis orientation sensor (for bottom hung windows, paintings and valuable objects)

Temperature sensor (for thermoregulation functions)

Flood sensor (for technical rooms, household appliances such as dishwashers and washing machines)

Universal transmitter for 2 magnetic contacts (double door, window + shutter)

Universal transmitter for 1 magnetic contact and roller shutters

Characteristics:

Magnetic contact / two-channel magnetic / two-channel magnetic contact with roller shutter input
detection of the opening of a door or window
input for the control of a NC type wired detector
additional digital channel for controlling a wired detector (two-channel magnetic, magnetic with roller shutter input)
input for controlling a wired roller shutter detector (detector with roller shutter input)

Magnetic vibration detector

detection of vibrations resulting from attempts to force a door or window
detection of the opening of a door, window, etc.
adjustment of detection sensitivity

Reorientation detector

detect a change in position of an object
individual protection of valuables

Temperature detector

temperature measurement in the range -10°C to +55°C
two programmable temperature thresholds (upper and lower)

Flood detector

water leak detection
input for connecting an external flood probe FPX-1 (white), FPX-1 BR (brown) or FPX-1 DG (anthracite) - the probe is available separately

Dual channel universal transmitter

two NC inputs
NC input + pulse counter for shutters

AXD-200 features low power consumption. It is powered by a CR123A 3V lithium battery, the condition of which is constantly monitored. The "ECO" option (available only in ABAX 2) extends the operating time of the device by up to four times.

The integrated LED facilitates checking the device in test mode and also indicates the next steps in the detector type selection process. Its configuration and firmware update can be performed remotely. Radio communication in the ABAX 2 system is encrypted with AES.

The product has tamper protection against opening the case and removal from the stand.

The detector is available in white (AXD-200), brown (AXD-200 BR) and anthracite (AXD-200 DG).

certificate of conformity with EN 50131 requirements for grade 2
option to choose one of the available detector operating modes:
magnetic
two-channel magnetic
magnetic with roller shutter input
of vibrations
reorientation
temperature
flooding
2xNC transmitter
NC transmitter+shutter

Compatible with:

ABAX 2 system controller (ACU-220 and ACU-280) and ARU-200 radio signal repeater
ABAX system controller (ACU-120 and ACU-270 and previous models ACU-100, ACU-250), INTEGRA 128-WRL control panel and ARU-100 radio signal repeater

Radio range in open field:

ABAX 2: up to 2000 m (with ACU-220) / up to 1200 m (with ACU-280)
ABAX: up to 500 m
remote configuration and firmware update
integrated temperature sensor (temperature measurement in the range -10 ° C to + 55 ° C)
LED indicator of violations in test mode
low power consumption and battery status control
"ECO" option to extend battery life (only in ABAX 2)
power supply: CR123A 3 V battery
tamper protection against opening of the container / removal from the holder
