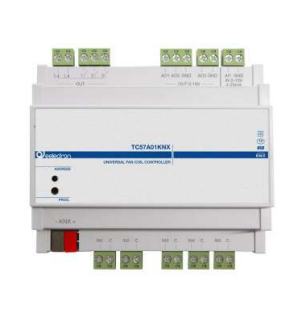

EELECTRON TC57A01KNX FANCOIL KNX UNIVERSAL CONTROLLER

The EELECTRON TC57A01KNX device is an EIB/KNX DIN rail actuator designed for the control of fan coil units. This device is ideal for residential, hotel and commercial building applications.

Technical characteristics

The TC57A01KNX has:

• 3 0-10 V outputs
• 3 relays of 16 A each

Exit Management

Two of the 0-10 V outputs are dedicated to the management of proportional valves, while the third 0-10 V output can be used for variable speed management or, alternatively, through the 3 relays present. Relays, if not used for speed regulation, can also activate lights or other loads.

Inputs and Sensors

The device includes an input for reading 0-10 V or 4-20 mA signals, allowing the interface with external probes for measuring temperature, humidity, CO2, etc. The third 0-10 V output can also be configured as an input.

In addition, 5 digital inputs are available for free potential contacts, useful for connecting buttons, window contacts, alarms; 2 of these inputs can be connected to NTC temperature probes (EELECTRON codes TS00A01ACC and TS00B01ACC).

Control Logic

The internal logic of the device manages 2 or 4-tube fan coils with a two-stage PI algorithm. The sophisticated parameterization allows its use in modern systems that require a differentiation of behavior between speed and valves, independent regulation, ventilation to avoid air stratification and logic for the efficient maintenance of comfort and energy savings.

Integration into the KNX System

The TC57A01KNX is part of a smart home automation system based on the KNX protocol, designed for automation and energy savings in buildings. This product, made in Italy, is suitable for residential, hotel and building applications.
